Water Products
Alongside our engineered skid systems, MIAH stocks and supplies the pumps, filtration equipment and pipe fittings that water, wastewater, irrigation, fire-protection and industrial projects depend on — from a single replacement fitting to a full project bill of materials.
All products are sourced from established manufacturers and supplied with material certificates and data sheets on request. Contract quantities, project packages and scheduled deliveries are available.
Pumps
Pumps for clean water, raw water, wastewater and process duties — supplied bare-shaft, close-coupled or as complete motor-driven sets, with control panels and VFDs where required.

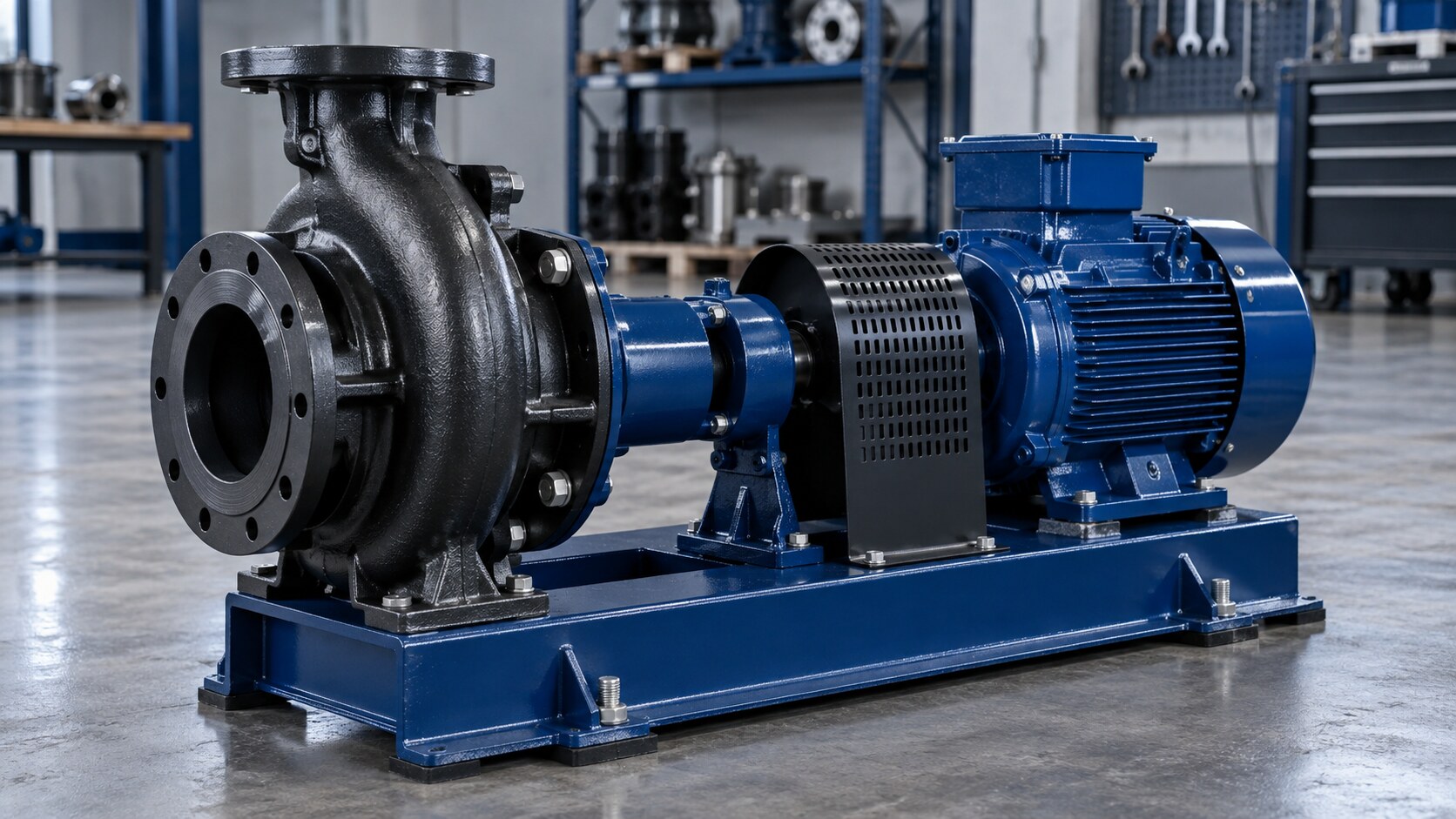

End-Suction Centrifugal
Single-stage horizontal pumps for water transfer, circulation and booster duty. Cast iron, bronze or stainless wetted parts. Flows to 2,500 m³/h.

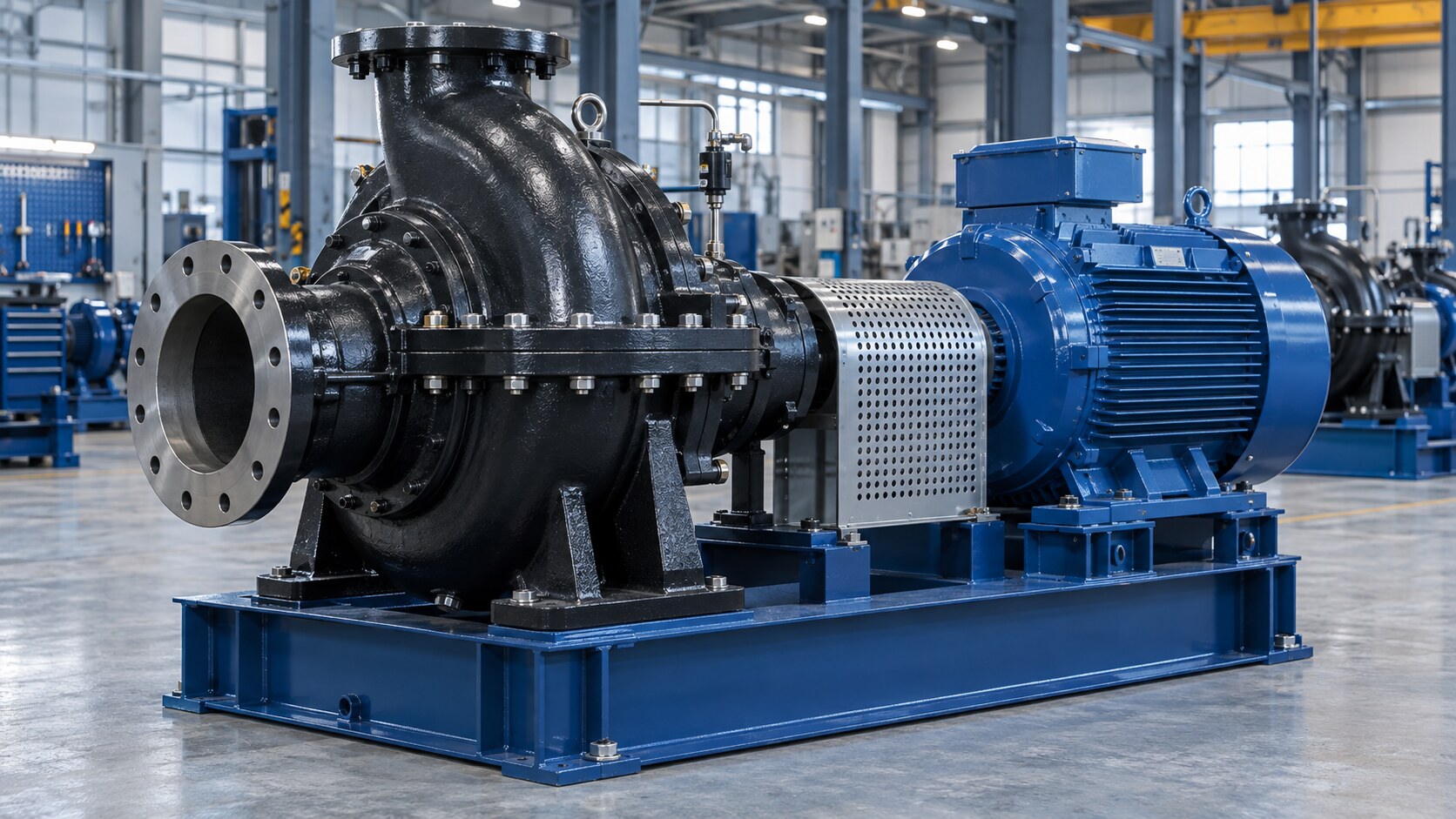

Horizontal Split-Case
Double-suction pumps for high-flow water supply, cooling water and fire-protection main pumps. Easy maintenance without disturbing piping.

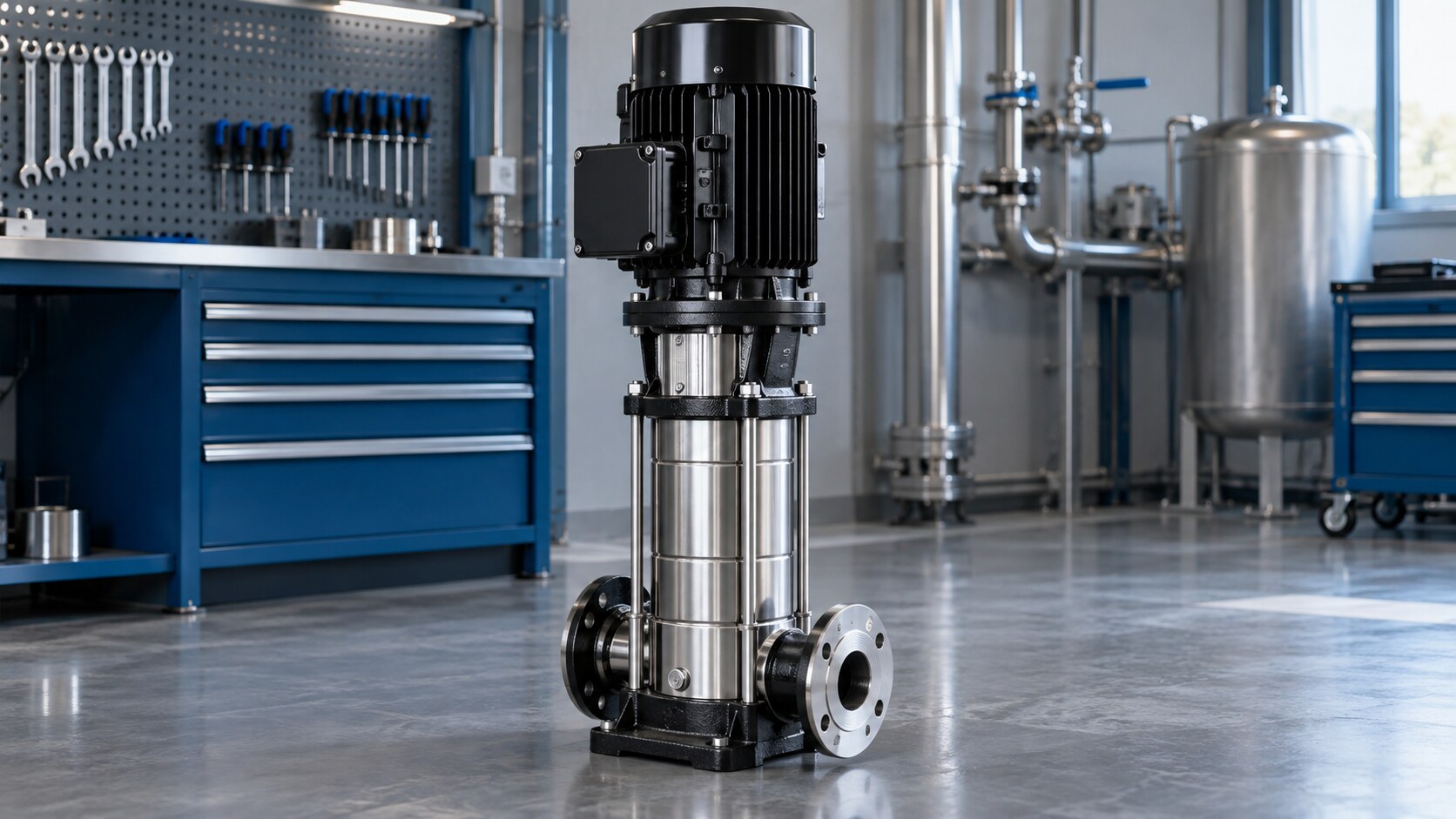

Vertical Multistage
Stainless in-line multistage pumps for pressure boosting, RO feed, boiler feed and washdown. Single units or packaged booster sets with 2–6 pumps.

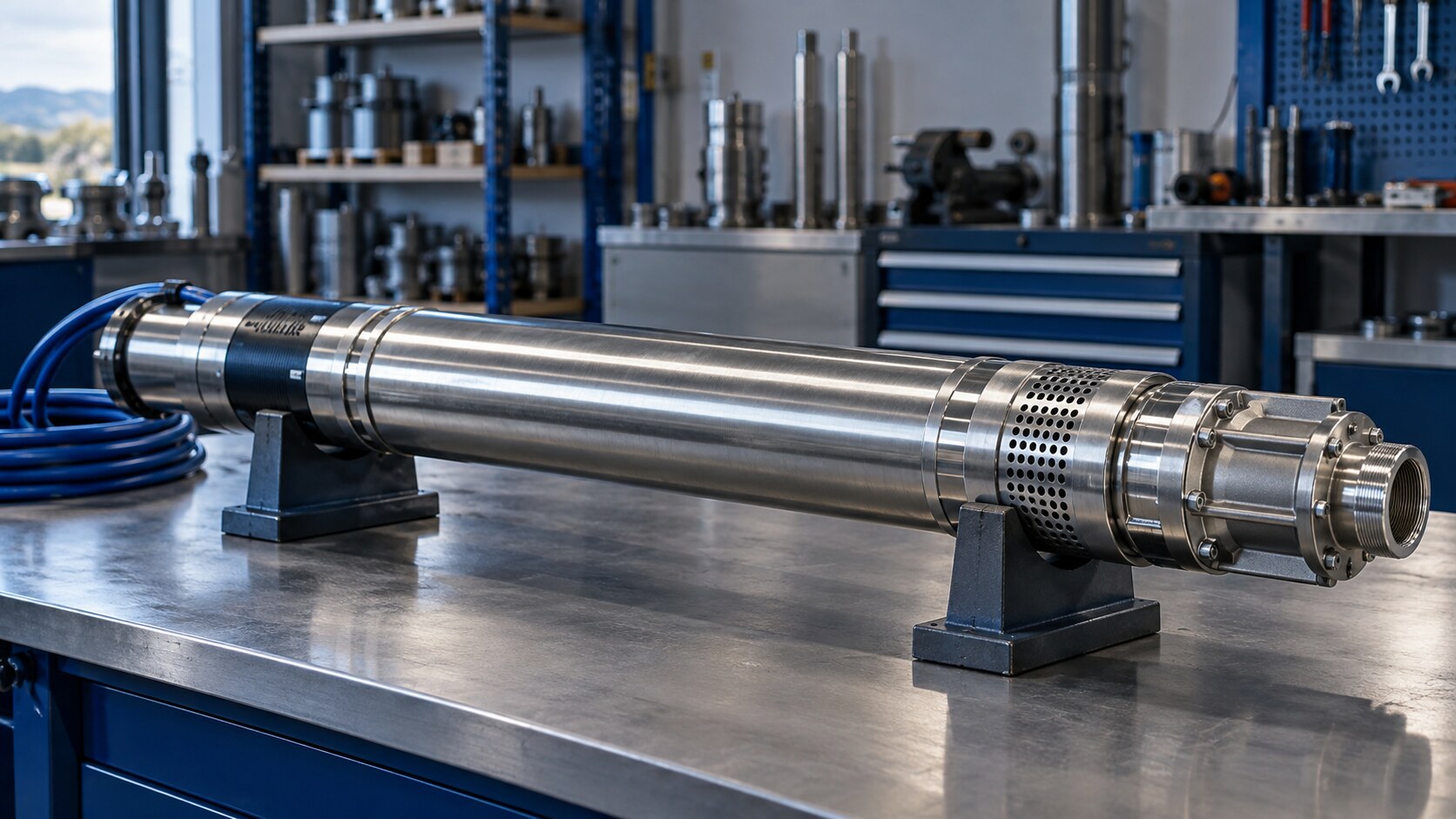

Submersible & Borehole
Sewage, drainage and dewatering submersibles with vortex or channel impellers; 4"–10" borehole pumps for wells and groundwater.
Fire Pump Sets
Diesel and electric fire pump packages with jockey pump and controller, built to NFPA 20 / UL-FM listed components.

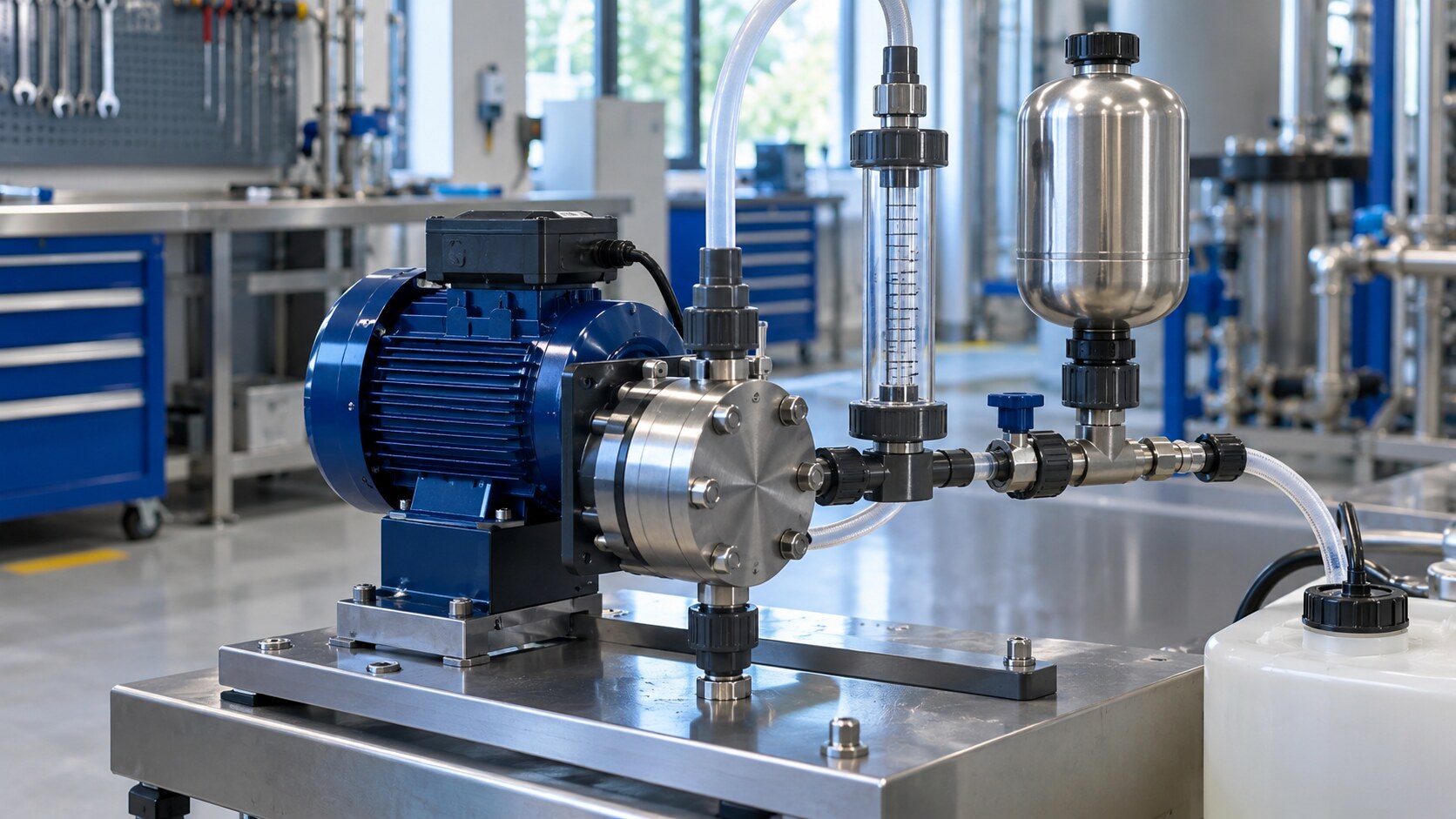

Dosing & Metering
Diaphragm and peristaltic chemical dosing pumps for chlorine, coagulant, pH correction and polymer — with tanks, mixers and skids.
Filters
Filtration for potable water, process water, irrigation and pump protection — sized to your flow, particle load and required filtration grade.

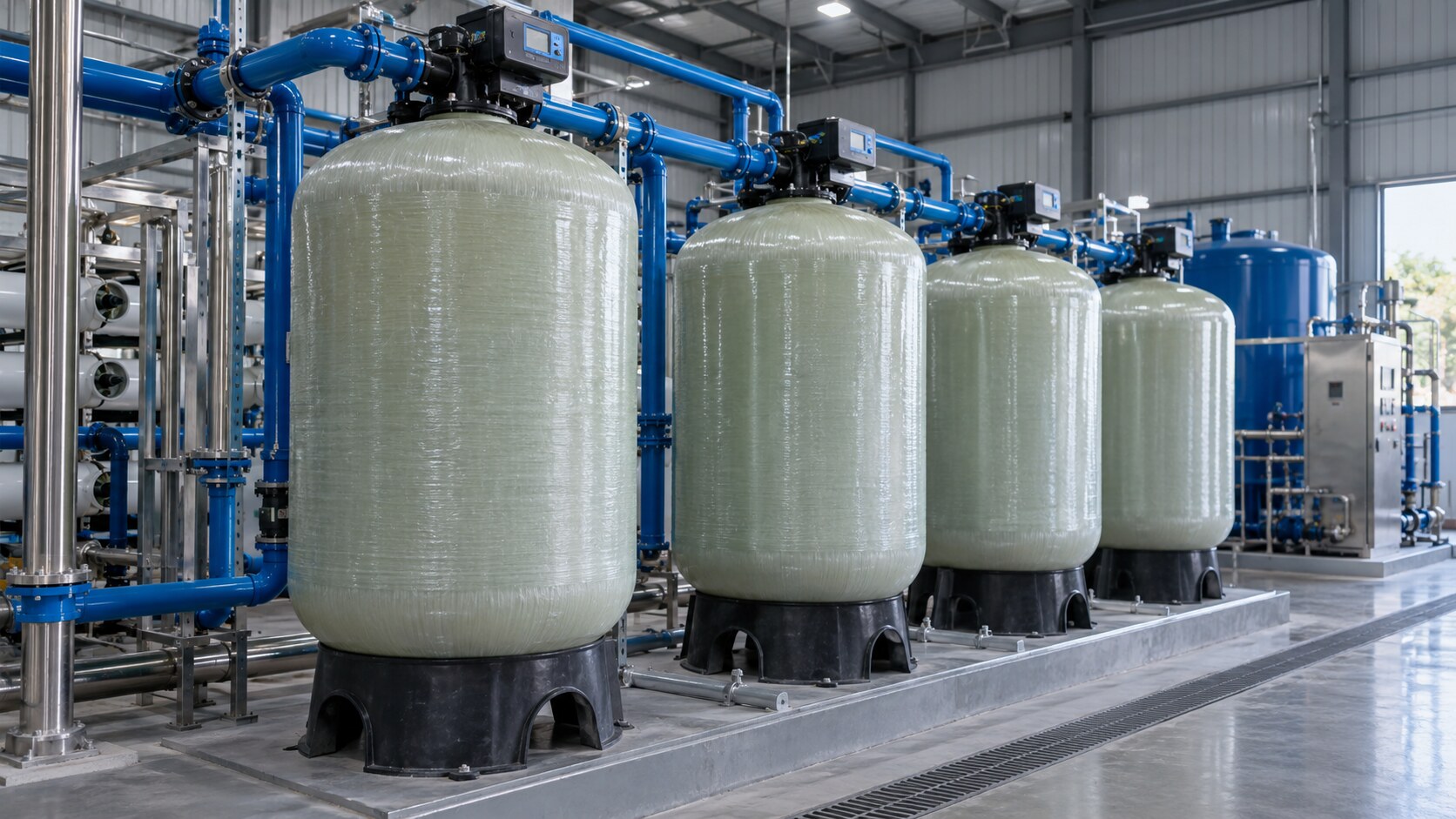

Multimedia & Sand Filters
Vertical and horizontal pressure vessels in FRP, carbon steel or stainless with automatic backwash. Turbidity and suspended-solids removal.
Activated Carbon Filters
Chlorine, taste, odour and organics removal ahead of RO or for potable polishing.

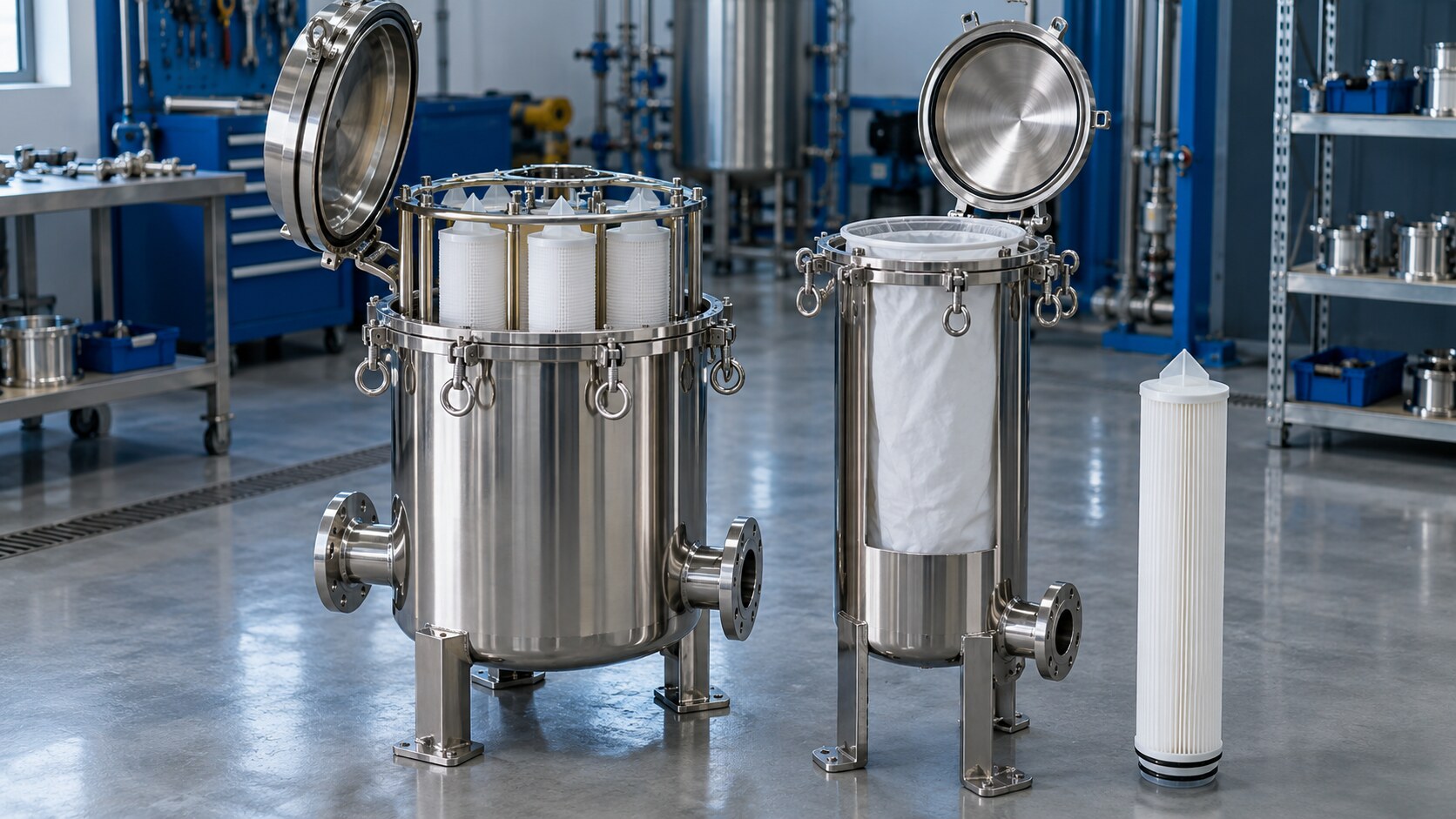

Cartridge & Bag Filters
Single and multi-round housings in 304/316 SS or PP; 1–100 micron elements for final filtration and RO pre-treatment.

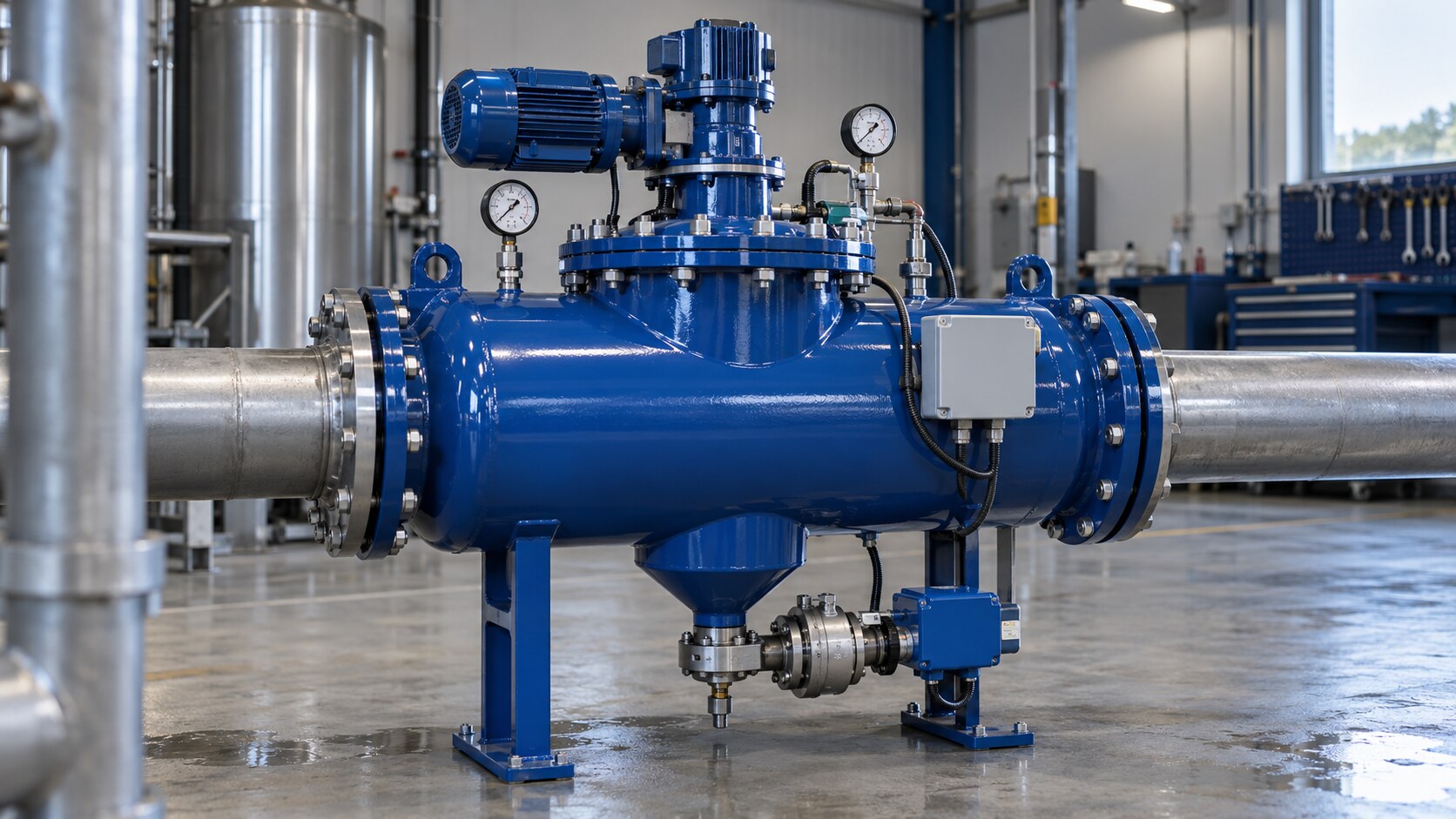

Automatic Self-Cleaning Screen Filters
Continuous-duty screen filters with motorised or hydraulic backflush for cooling water, irrigation and raw-water intake.

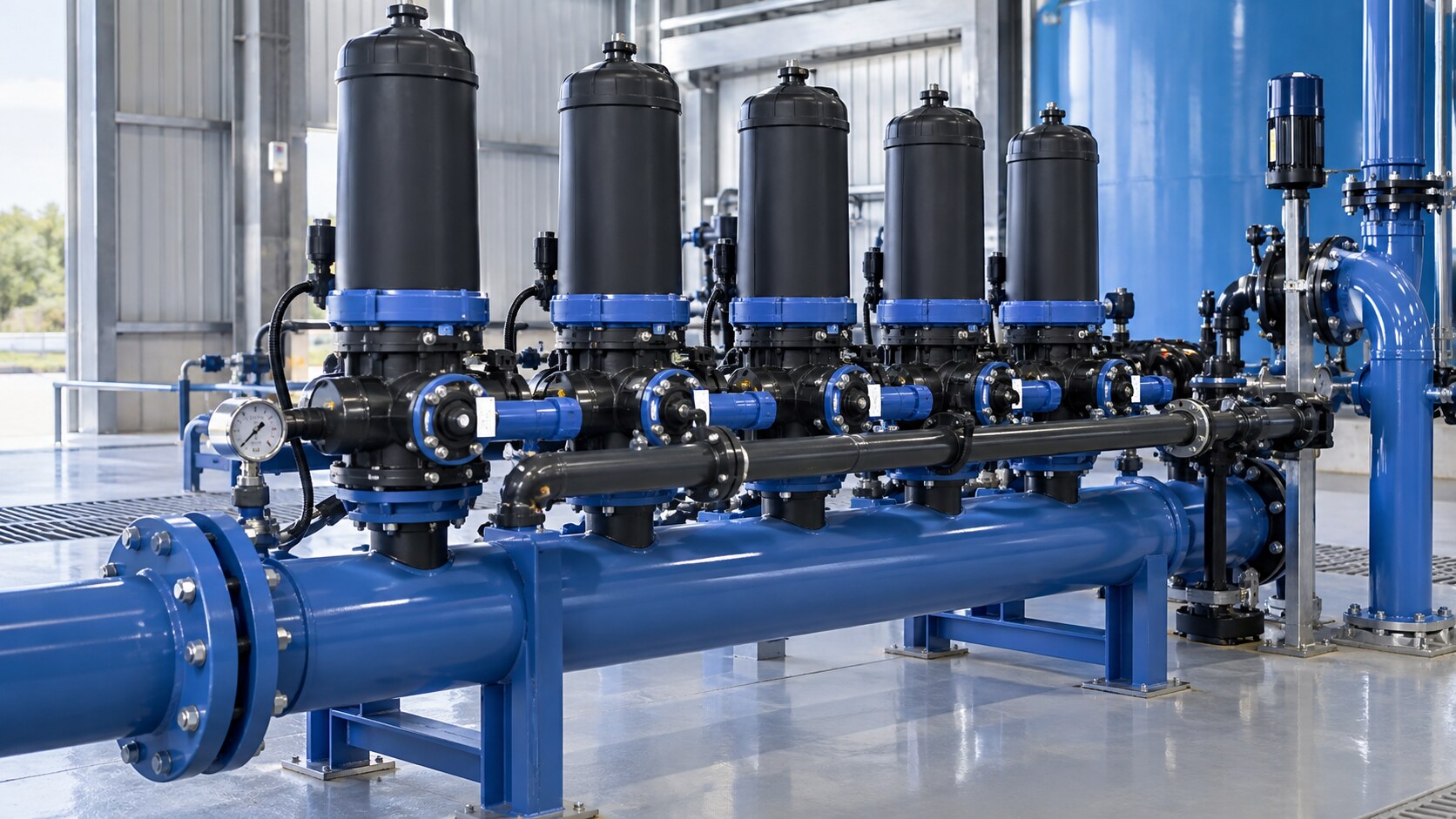

Disc Filters
Modular disc-ring filters for agricultural irrigation and landscape systems; manual or automatic backwash batteries.

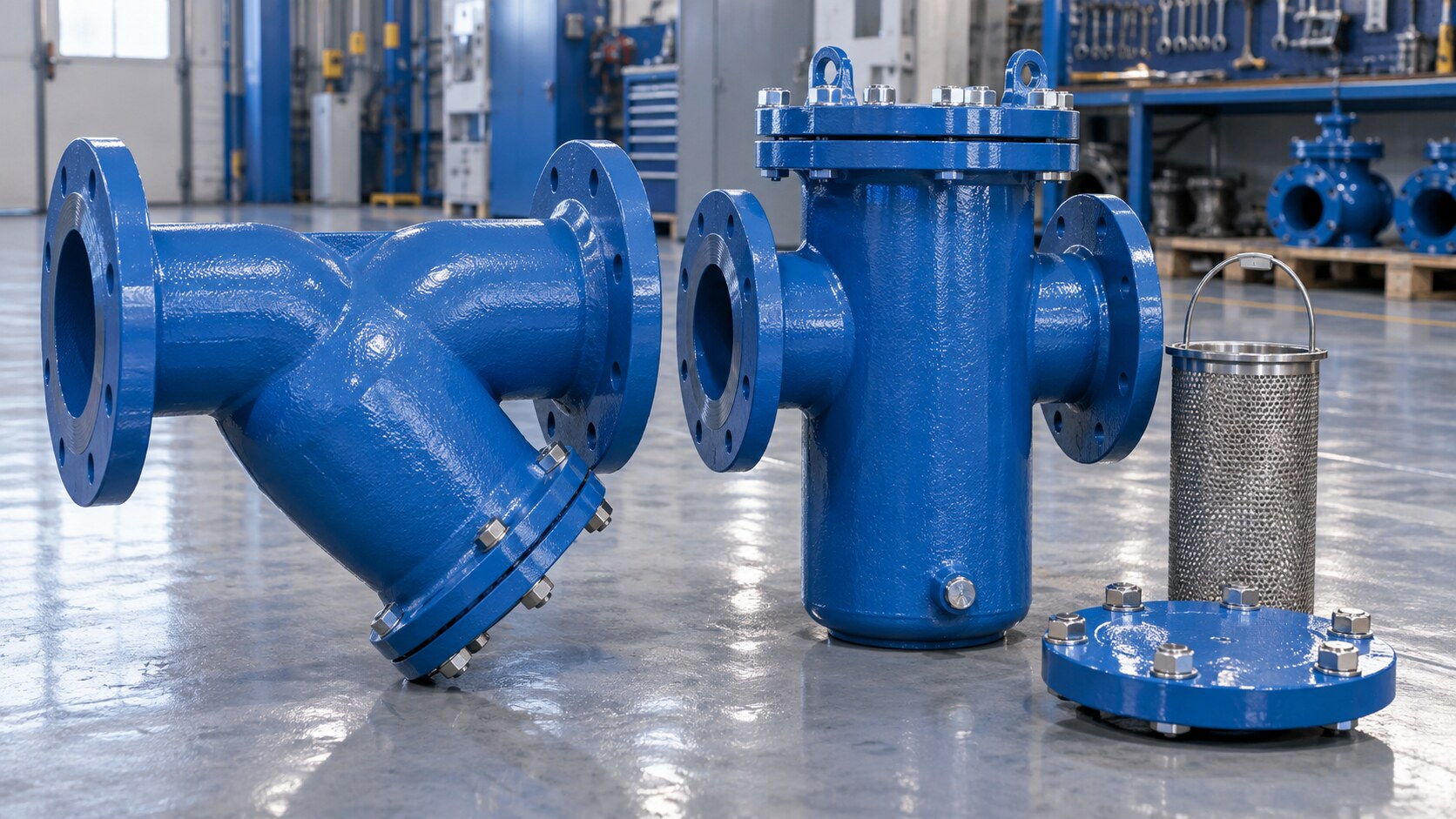

Strainers
Y-type, basket and duplex strainers in DI, cast steel and SS for pump suction and equipment protection.
DI (Ductile Iron) Fittings
Ductile iron pipe fittings for water transmission, distribution and sewerage networks. Fusion-bonded epoxy coated inside and out; cement-mortar lining available on request.
| Standards | ISO 2531 / EN 545 (water), EN 598 (sewer), AWWA C110 / C153, BS EN 12842 |
|---|---|
| Sizes | DN 80 – DN 1200 (3" – 48") |
| Pressure Ratings | PN 10 / PN 16 / PN 25 · Class 150 / 250 / 350 |
| Joint Types | Flanged, push-on (Tyton / socket-spigot), mechanical joint (MJ), restrained joint |
| Coating | Fusion-bonded epoxy (FBE) 250 µm min. · Cement-mortar lining · Bitumen on request |

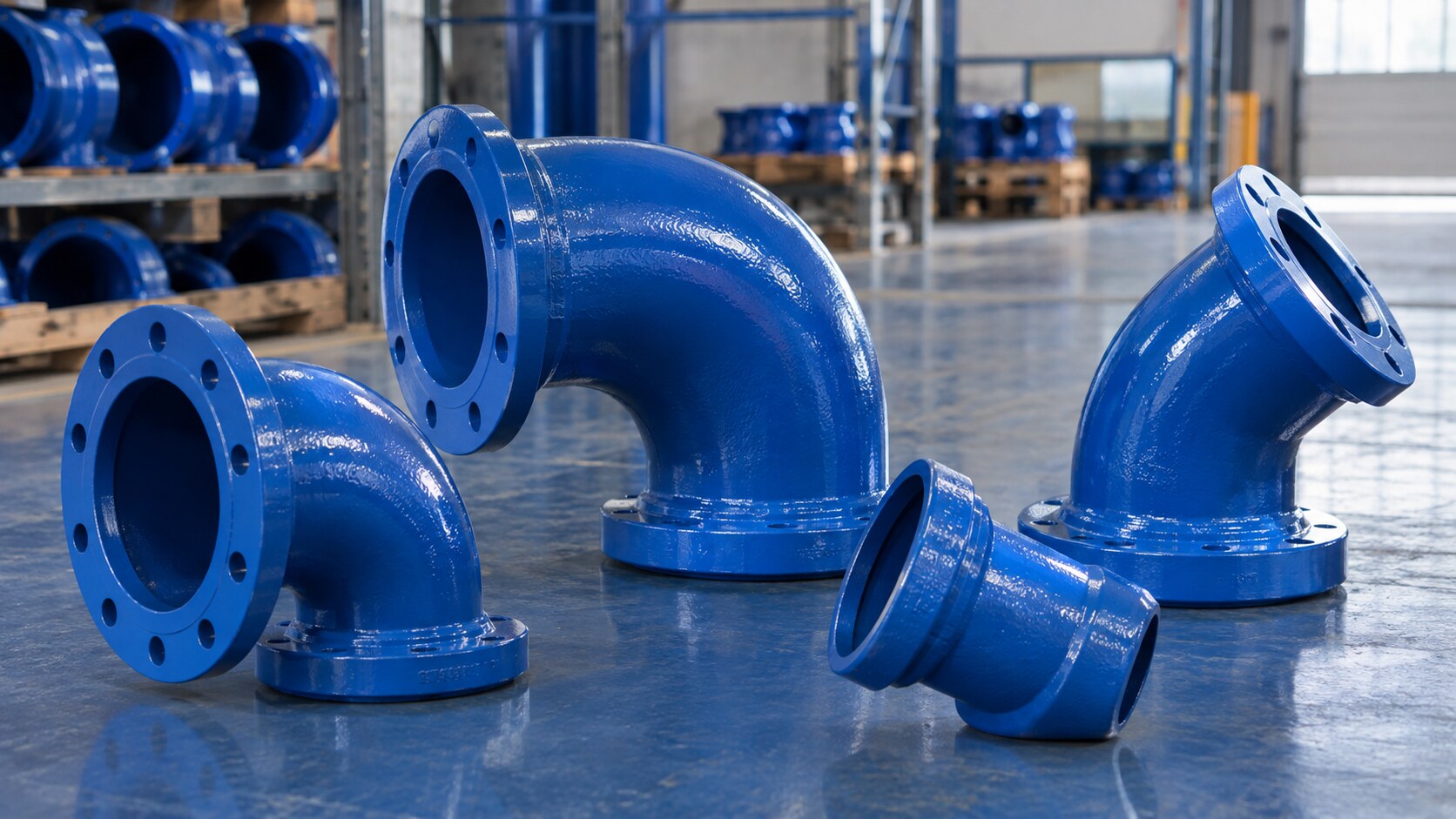

Bends
11¼°, 22½°, 45° and 90° bends — double-flanged, double-socket and flange-socket patterns.

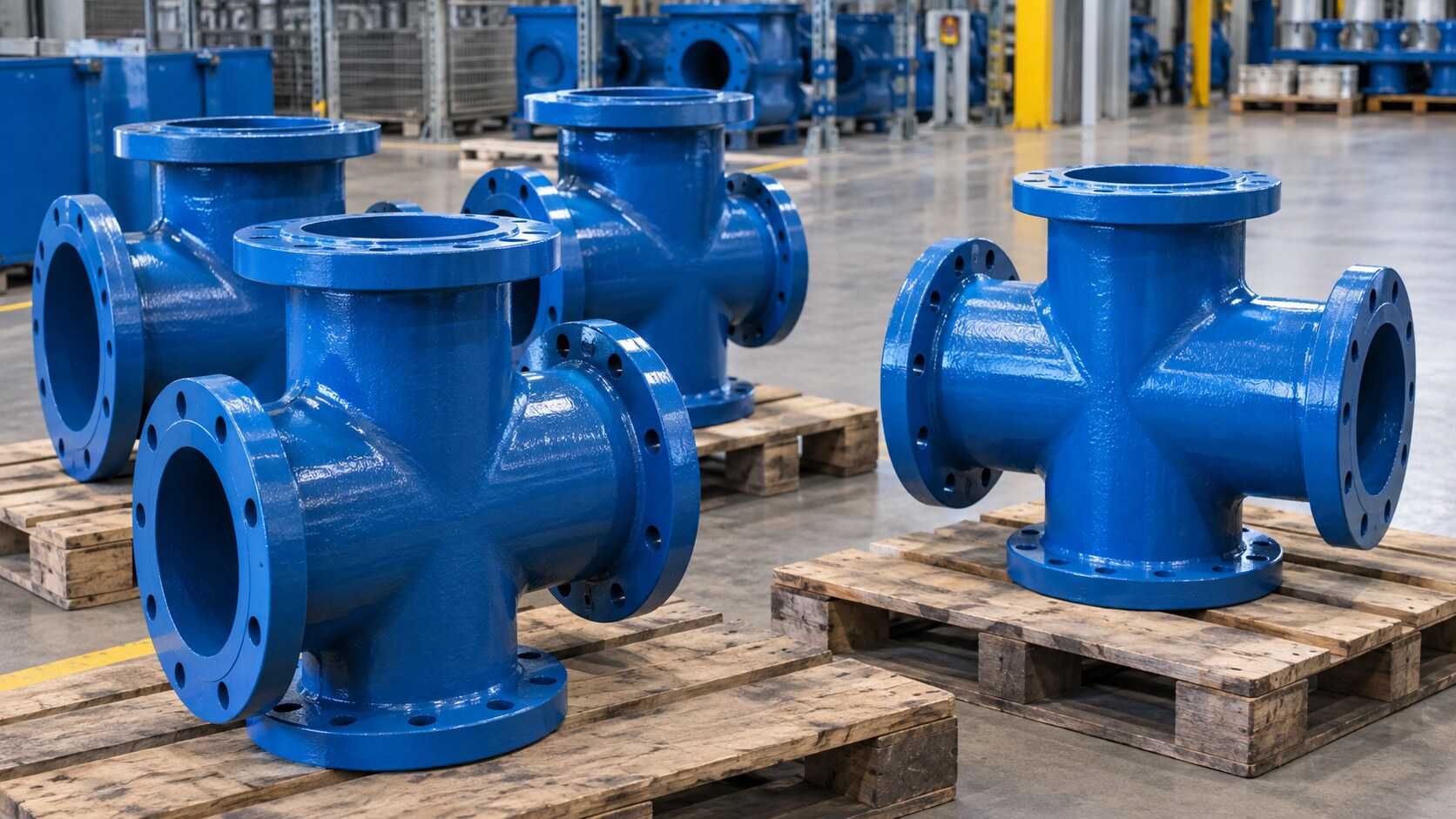

Tees & Crosses
Equal and reducing tees, all-flanged or all-socket, plus crosses for network junctions.

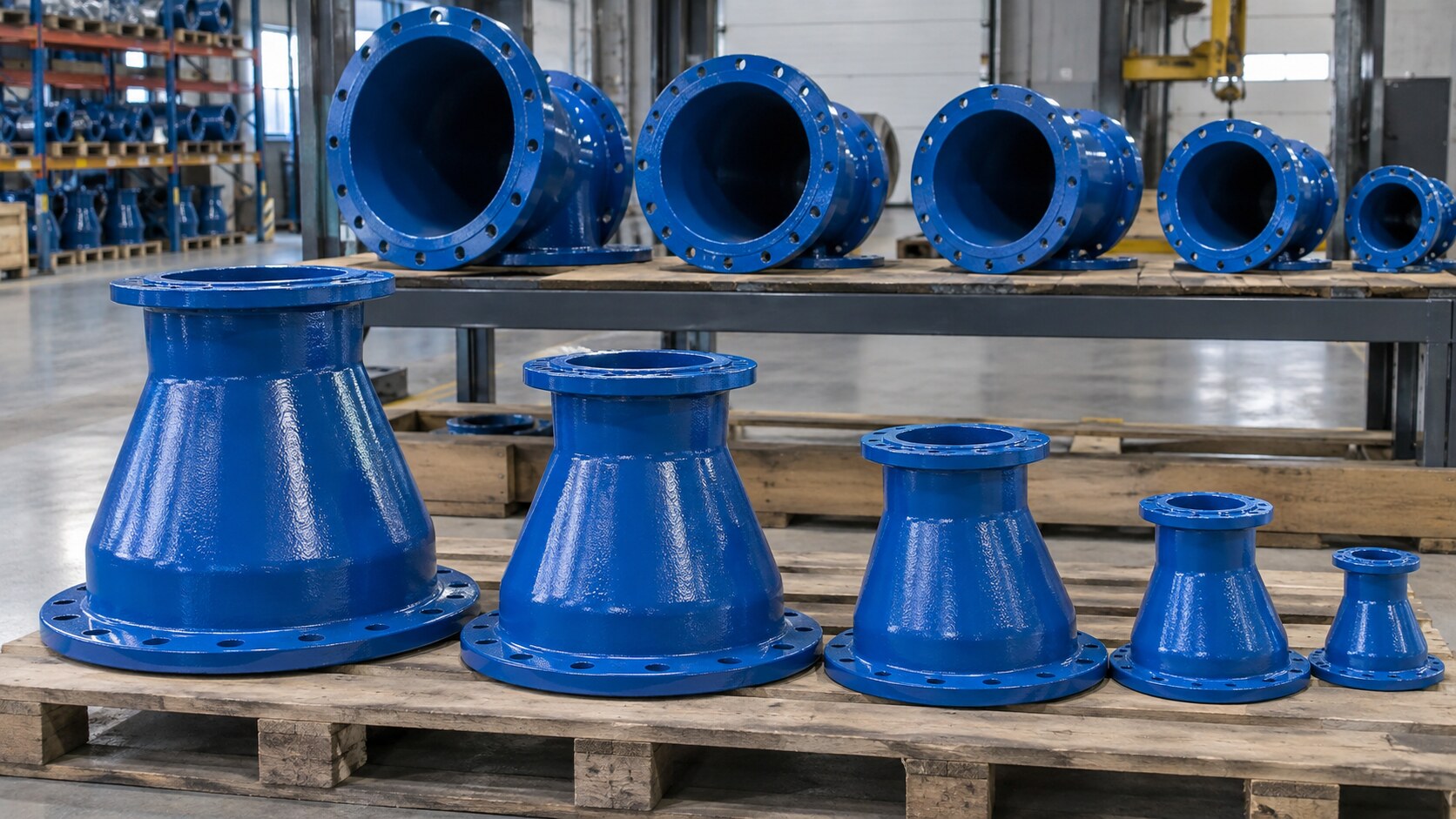

Reducers (Tapers)
Concentric and eccentric reducers, flanged or socketed, DN 80 – DN 1200.

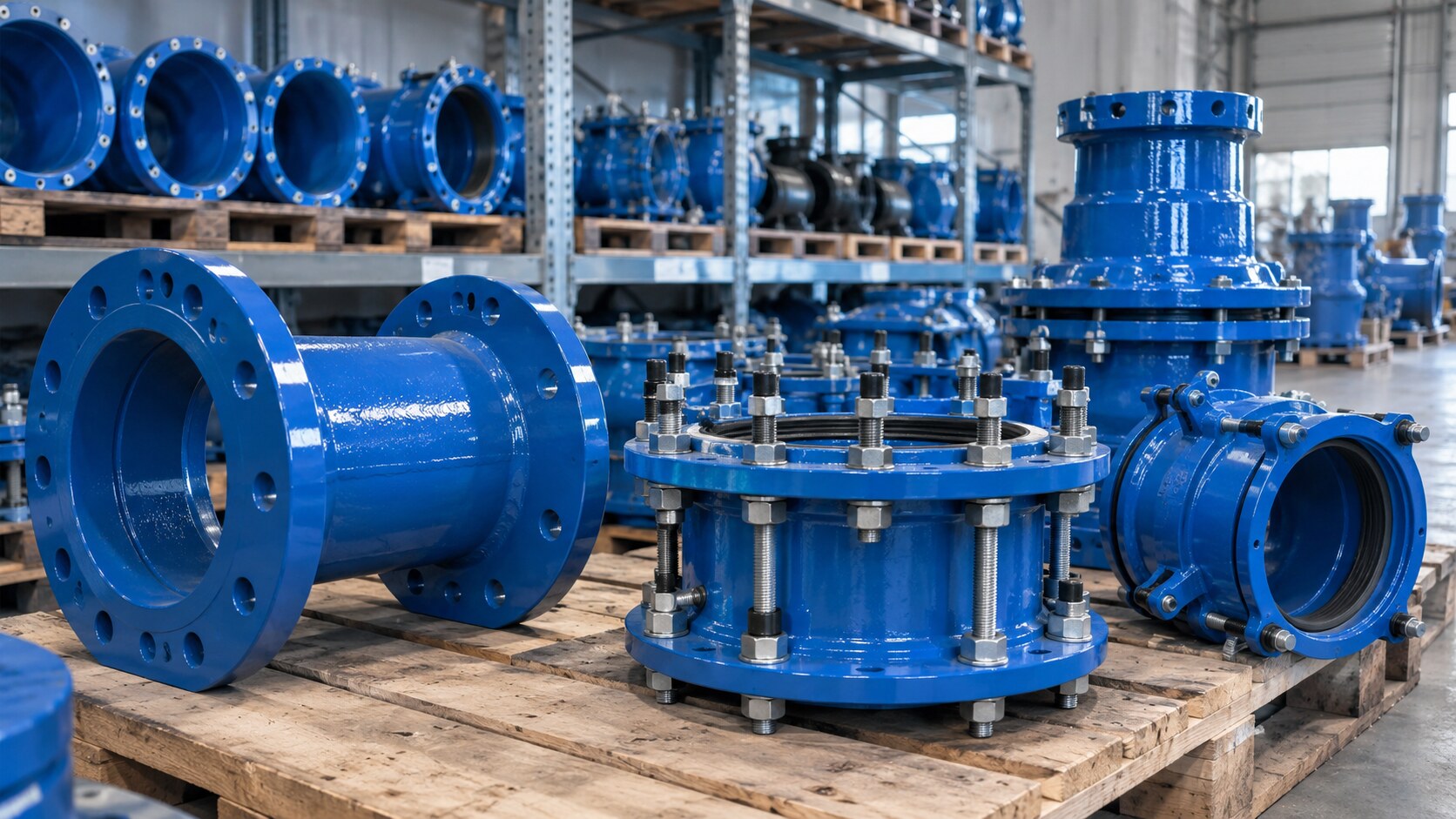

Flanged Spigots & Sockets
Flange adaptors joining flanged valves and equipment to push-on or MJ pipe.

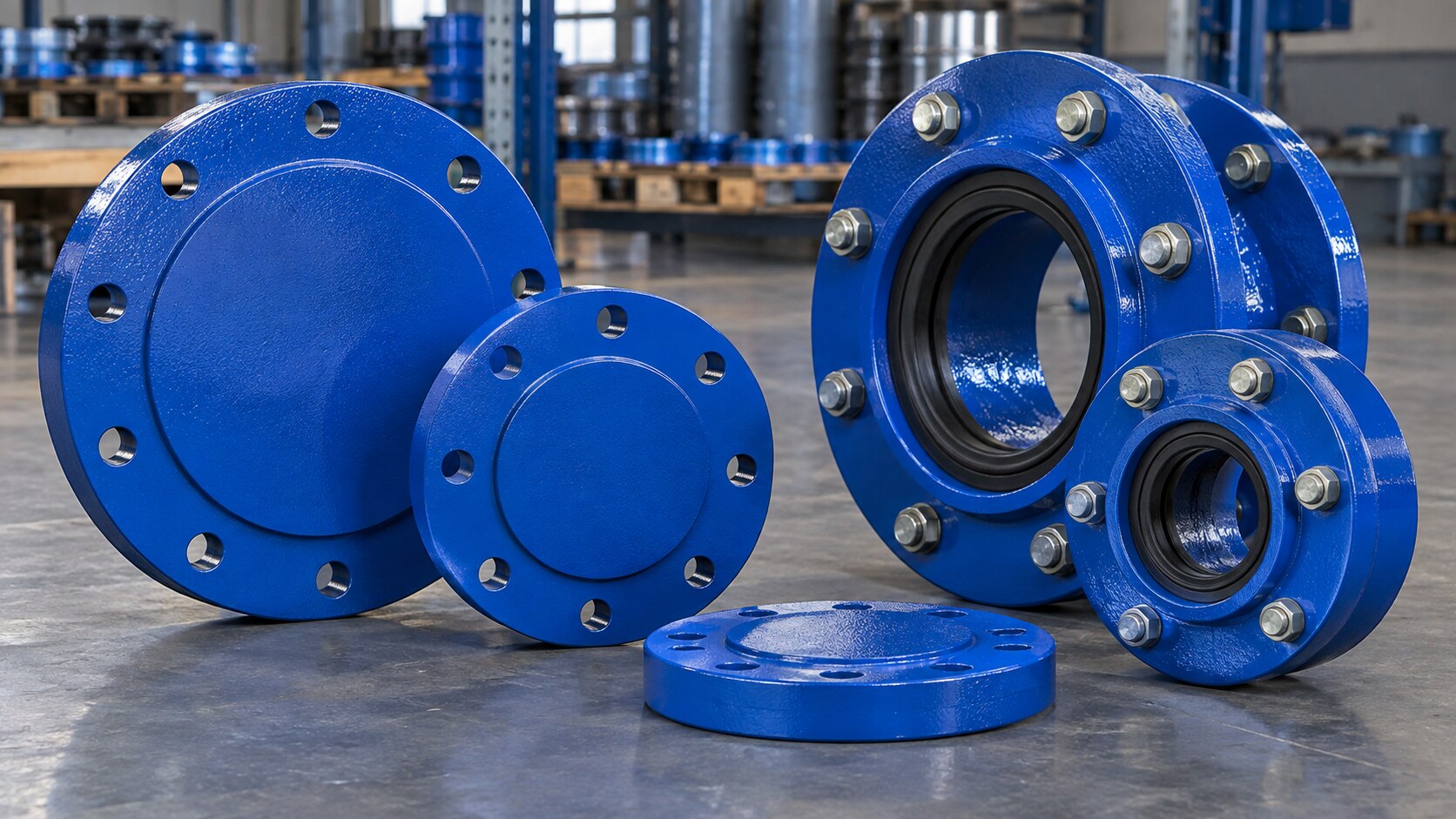

Blank & Puddle Flanges
Blank flanges for line ends and testing; puddle flanges for wall and tank penetrations.

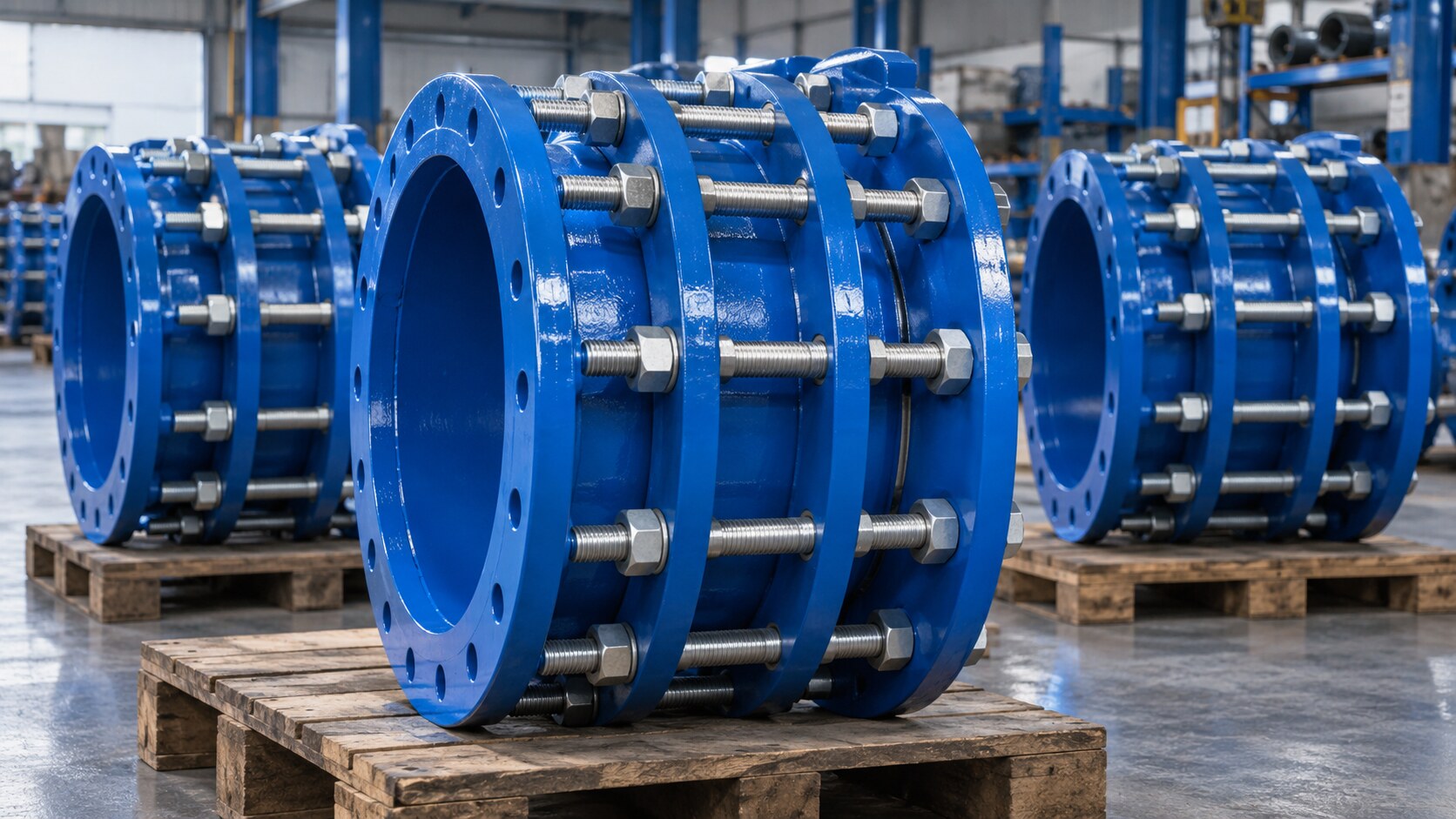

Dismantling Joints
Flanged dismantling joints and flange adaptors for easy valve and meter removal.

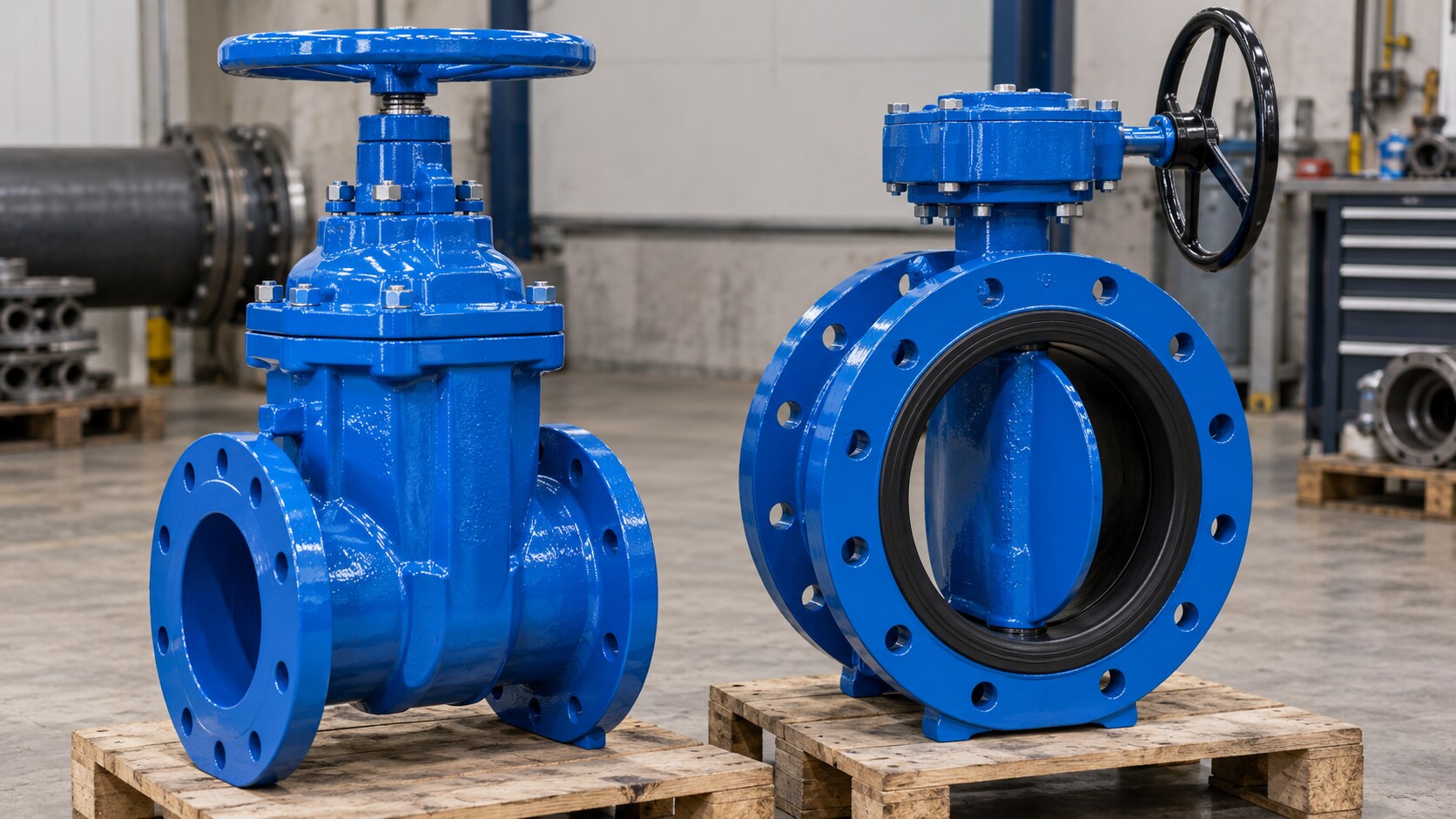

DI Valves
Resilient-seated gate valves, butterfly valves and swing check valves with DI bodies, PN 10/16.

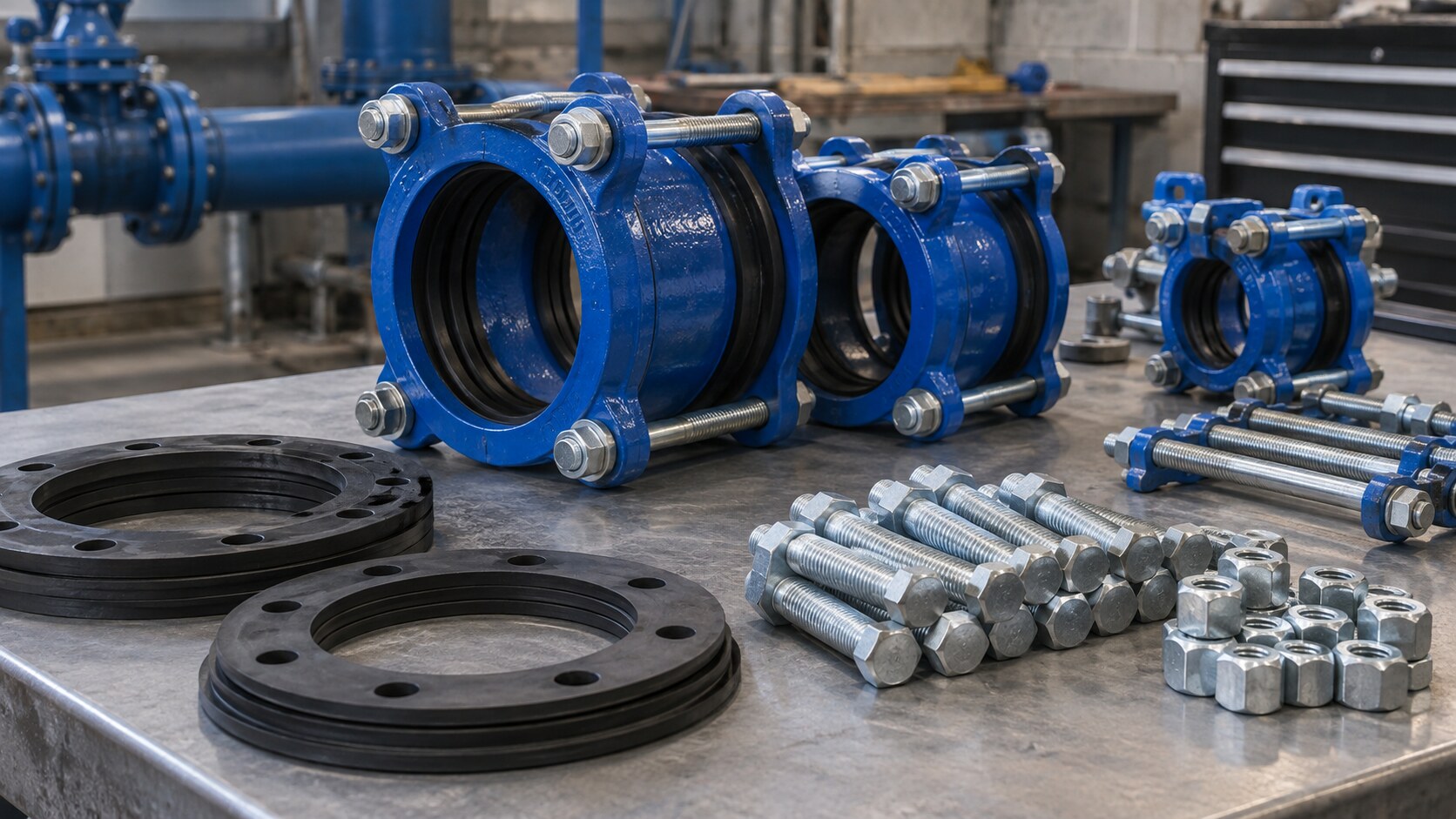

Gaskets, Bolts & Restraints
EPDM / NBR gaskets, hot-dip galvanised bolt sets and restraining kits for every joint.
SS (Stainless Steel) Fittings
304 / 304L and 316 / 316L stainless steel fittings for potable water, desalination, food-grade, chemical and marine applications where corrosion resistance matters.
| Standards | ASTM A403 / A182 · ASME B16.9 / B16.11 / B16.5 · DIN 2605 / 2615 / 2616 · BS 3799 · ISO 1127 · DIN 11850 (hygienic) |
|---|---|
| Grades | 304, 304L, 316, 316L, 316Ti · Duplex 2205 on request |
| Sizes | ½" – 24" (DN 15 – DN 600) |
| Ratings | Sch 10S / 40S / 80S butt-weld · Class 150 / 3000 threaded & socket-weld · PN 10 / 16 flanges |
| Certification | EN 10204 3.1 material certificates supplied on request |

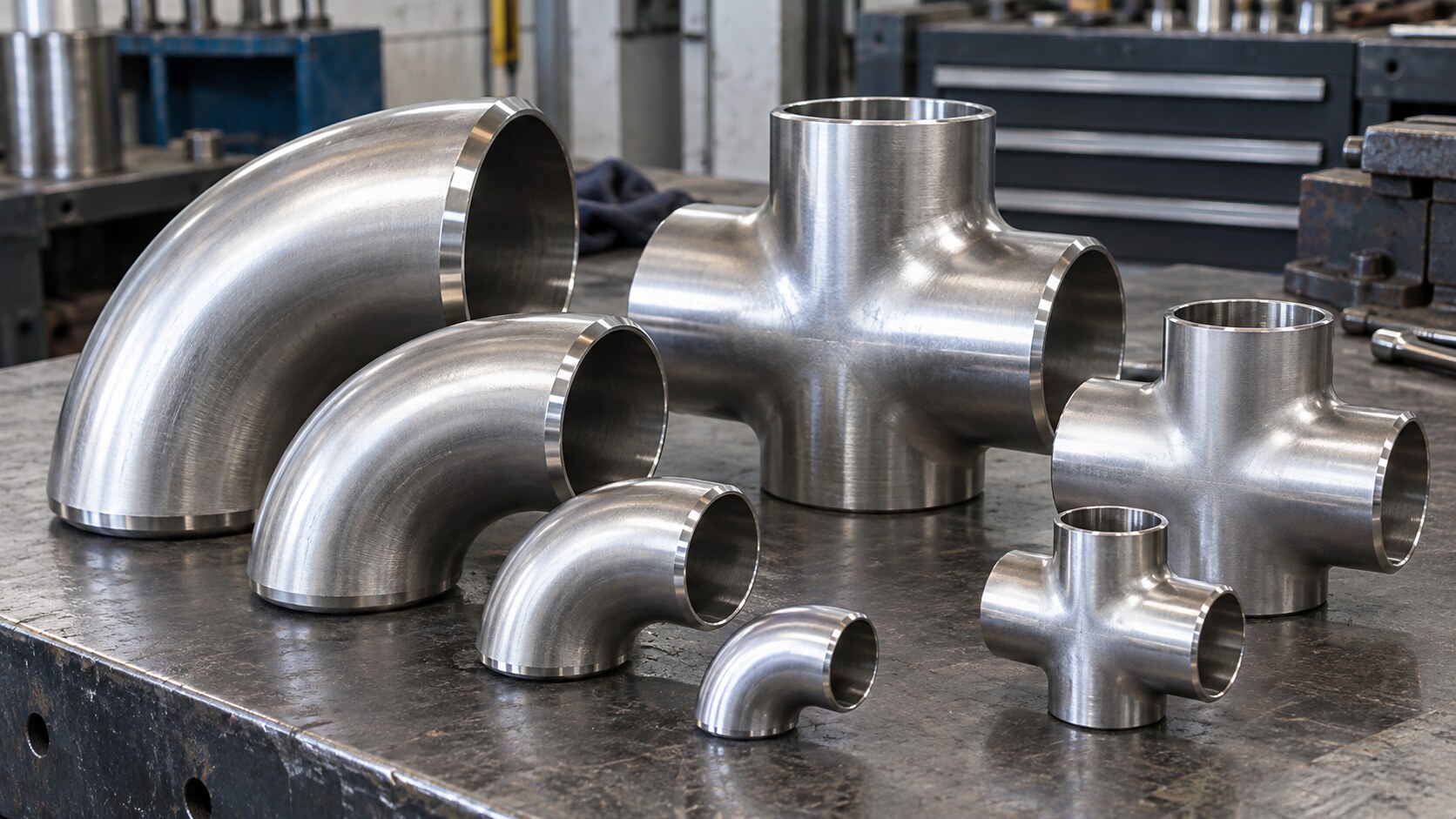

Butt-Weld Elbows & Tees
45°, 90° and 180° elbows, equal and reducing tees to ASME B16.9, Sch 10S – 80S.

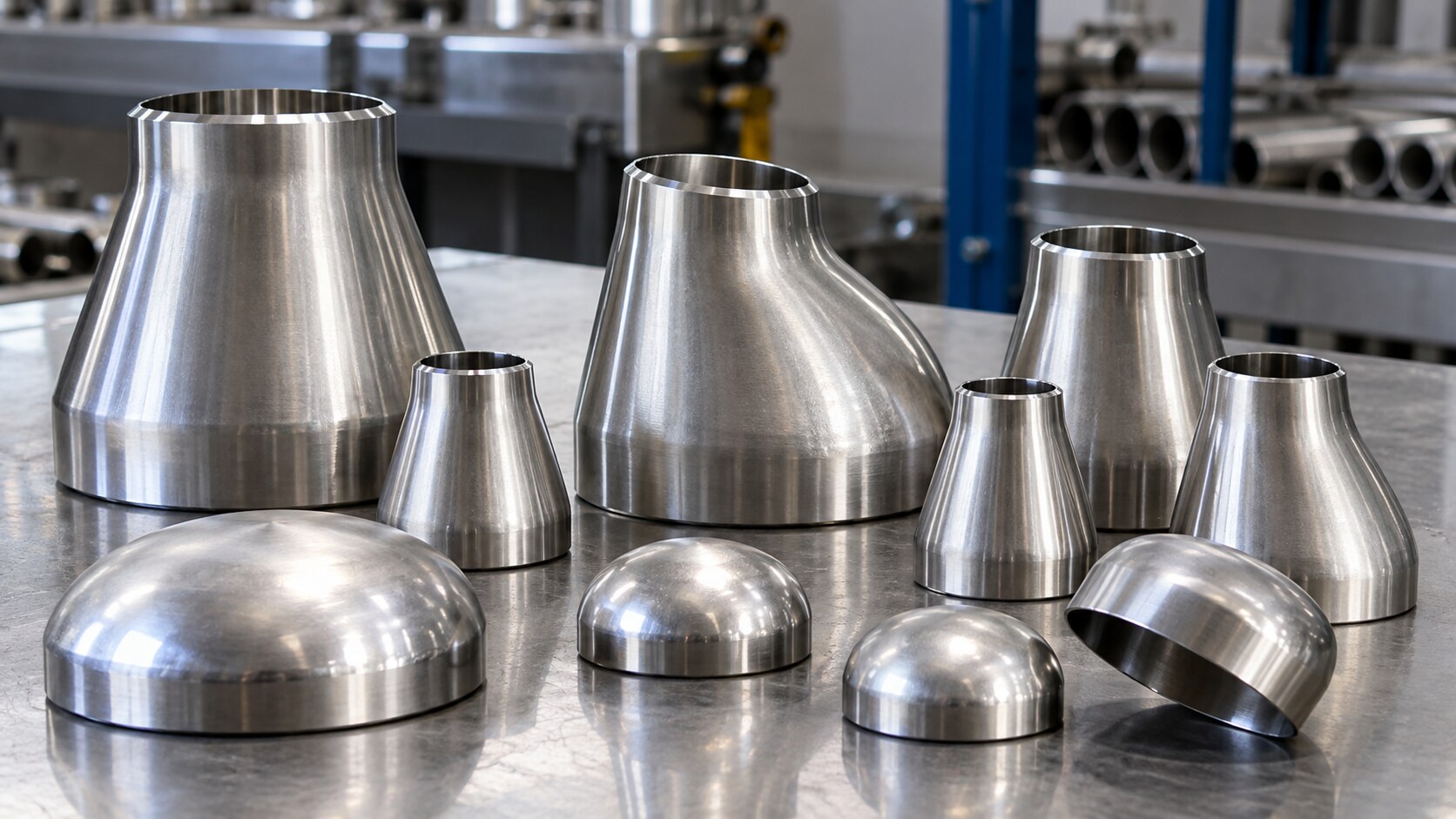

Butt-Weld Reducers & Caps
Concentric and eccentric reducers, pipe caps and stub ends in 304L / 316L.

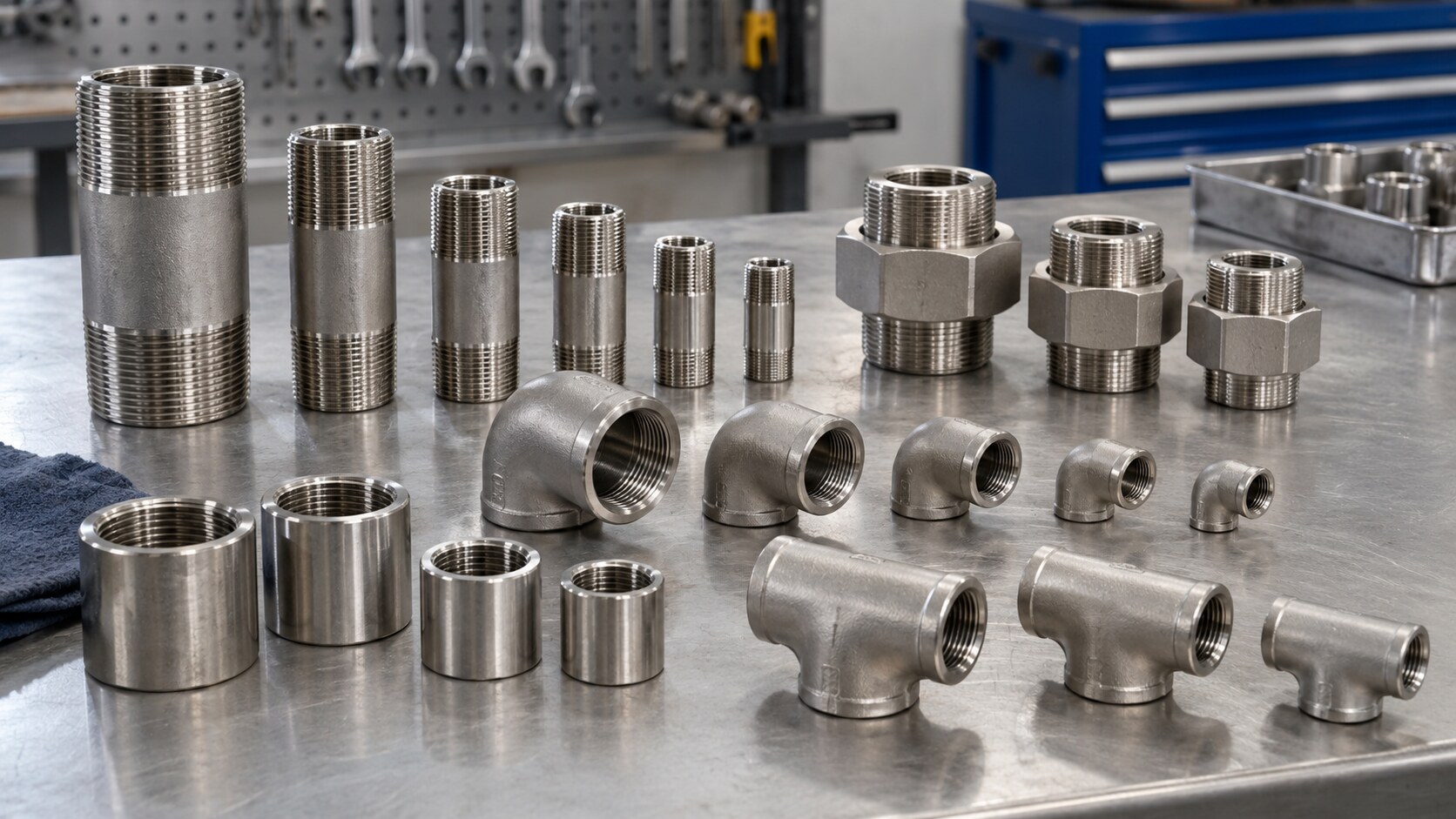

Threaded Fittings
NPT and BSP elbows, tees, nipples, unions, couplings and plugs, Class 150 / 3000.

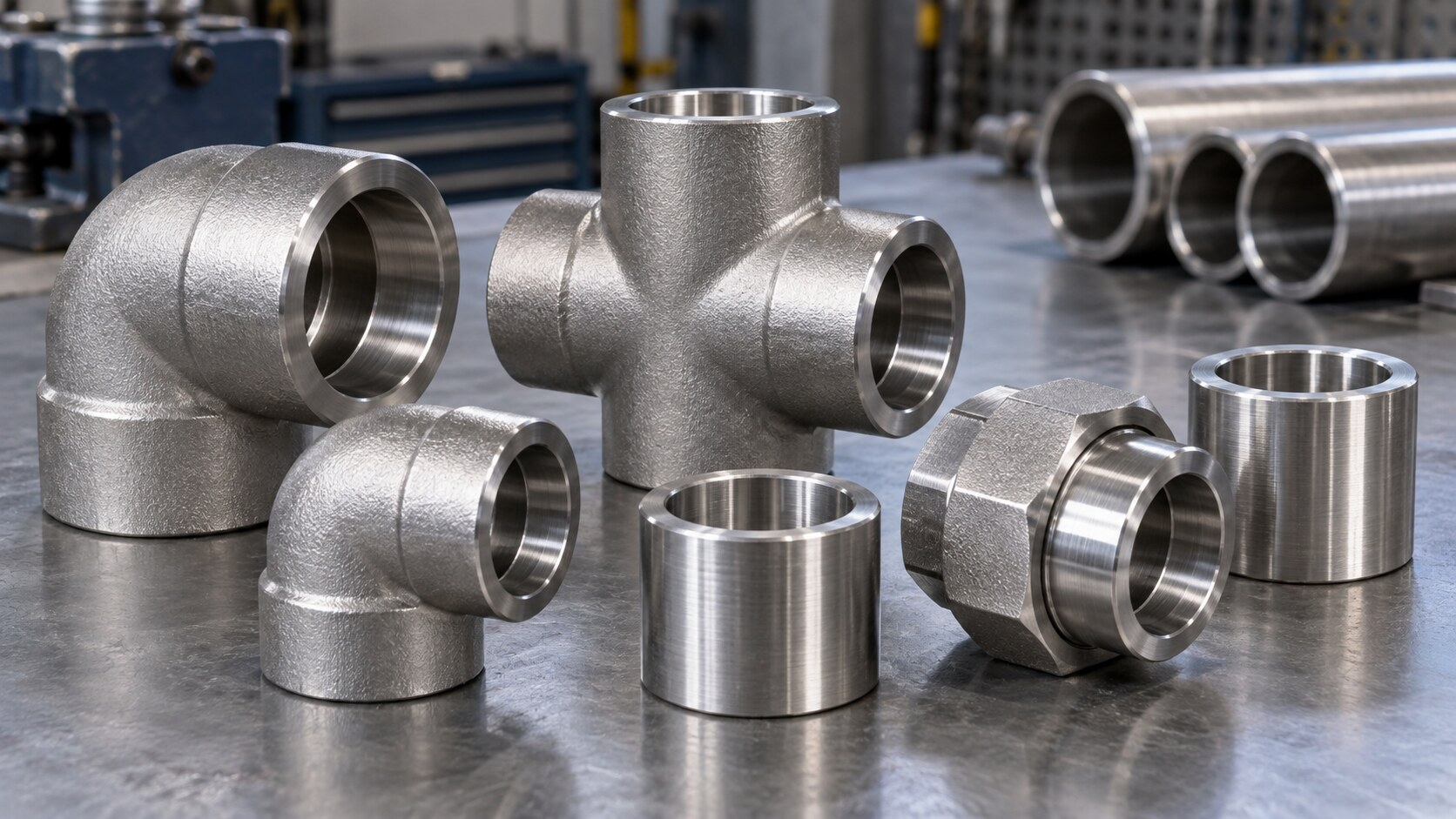

Socket-Weld Fittings
Class 3000 socket-weld elbows, tees, couplings and unions to ASME B16.11.

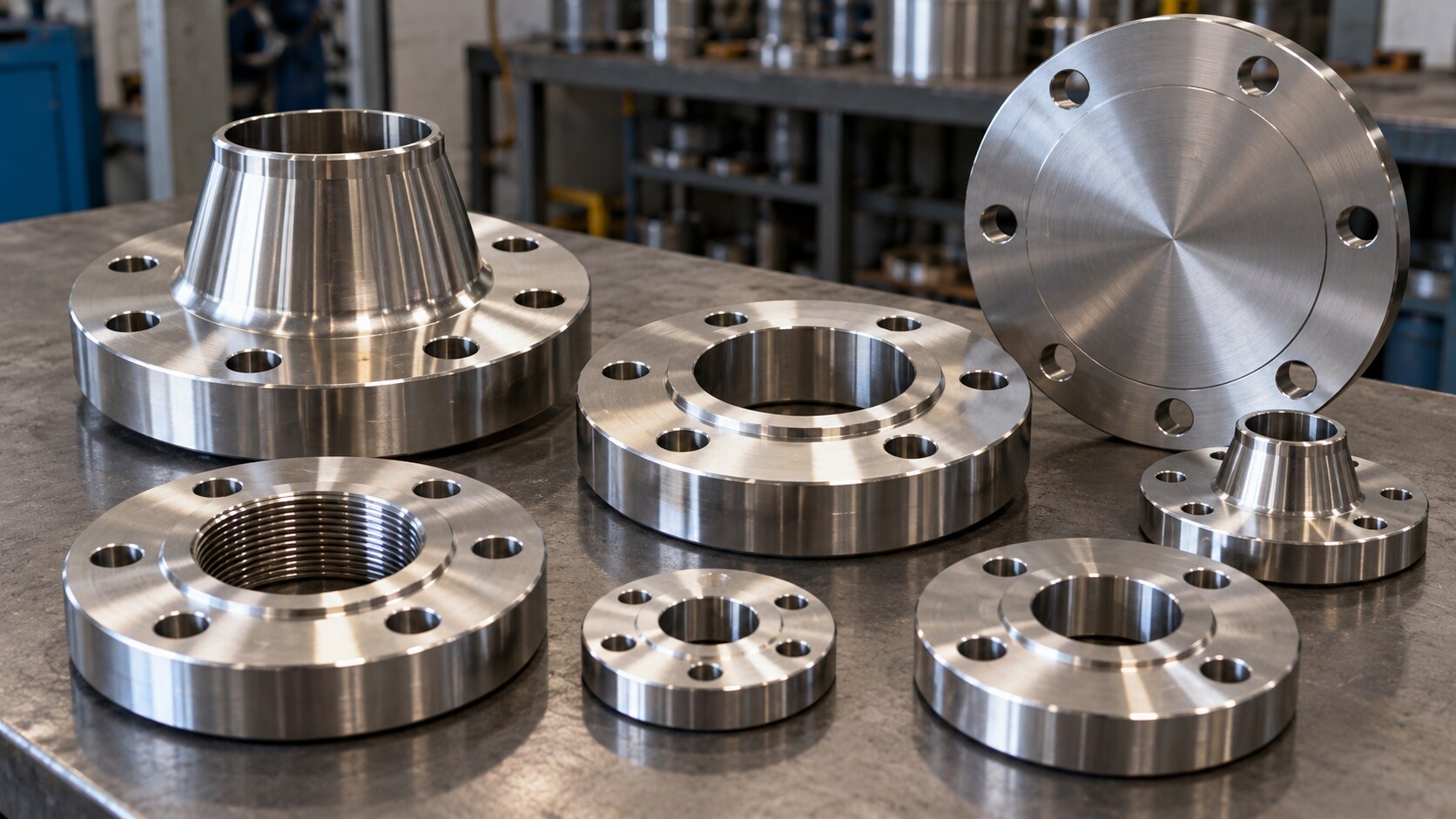

Flanges
Weld-neck, slip-on, blind, lap-joint and threaded flanges to ASME B16.5 and EN 1092-1.

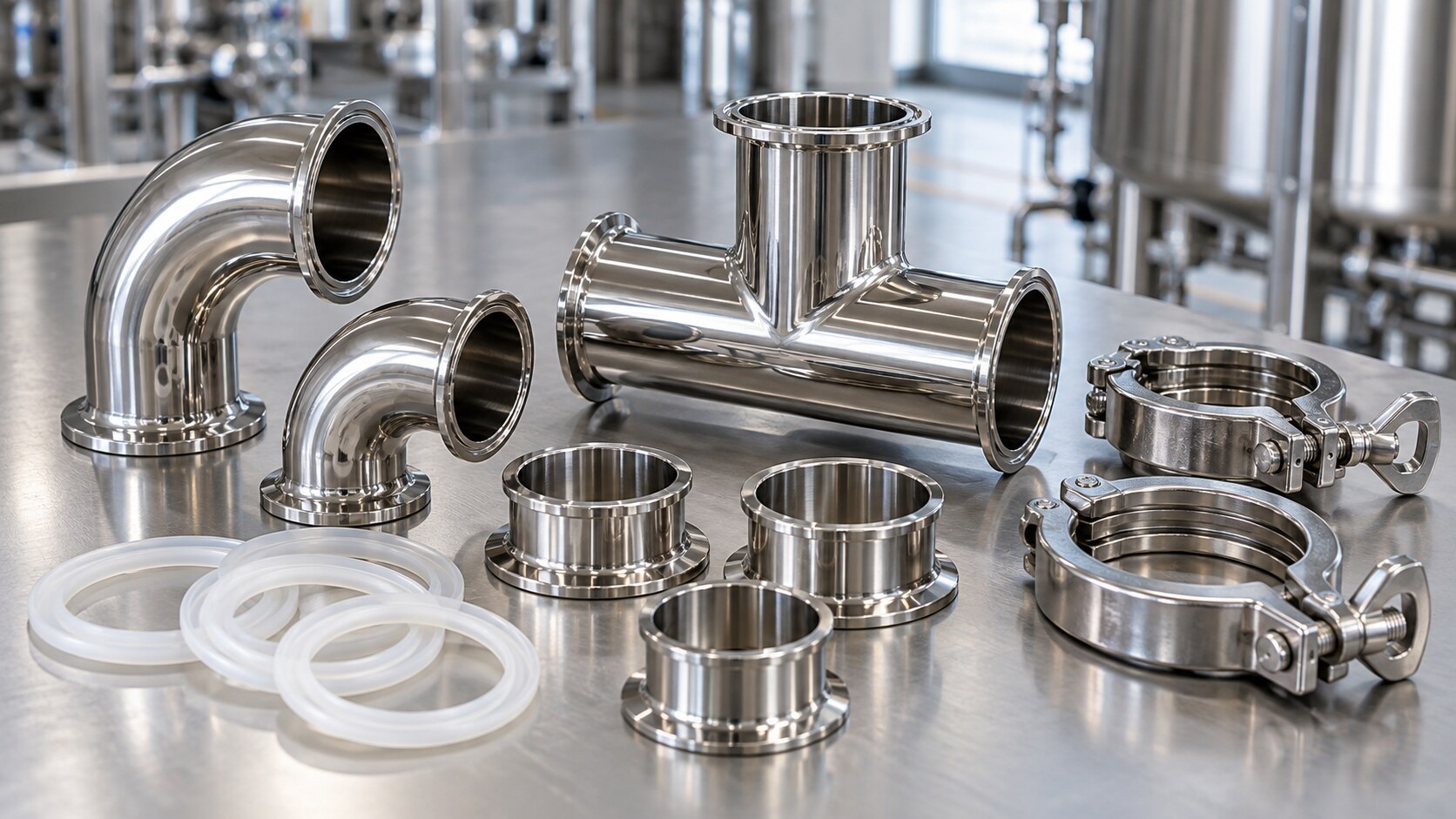

Tri-Clamp & Hygienic
Sanitary ferrules, clamps, gaskets, bends and tees to DIN 11850 / ISO 2852 for food and pharma.

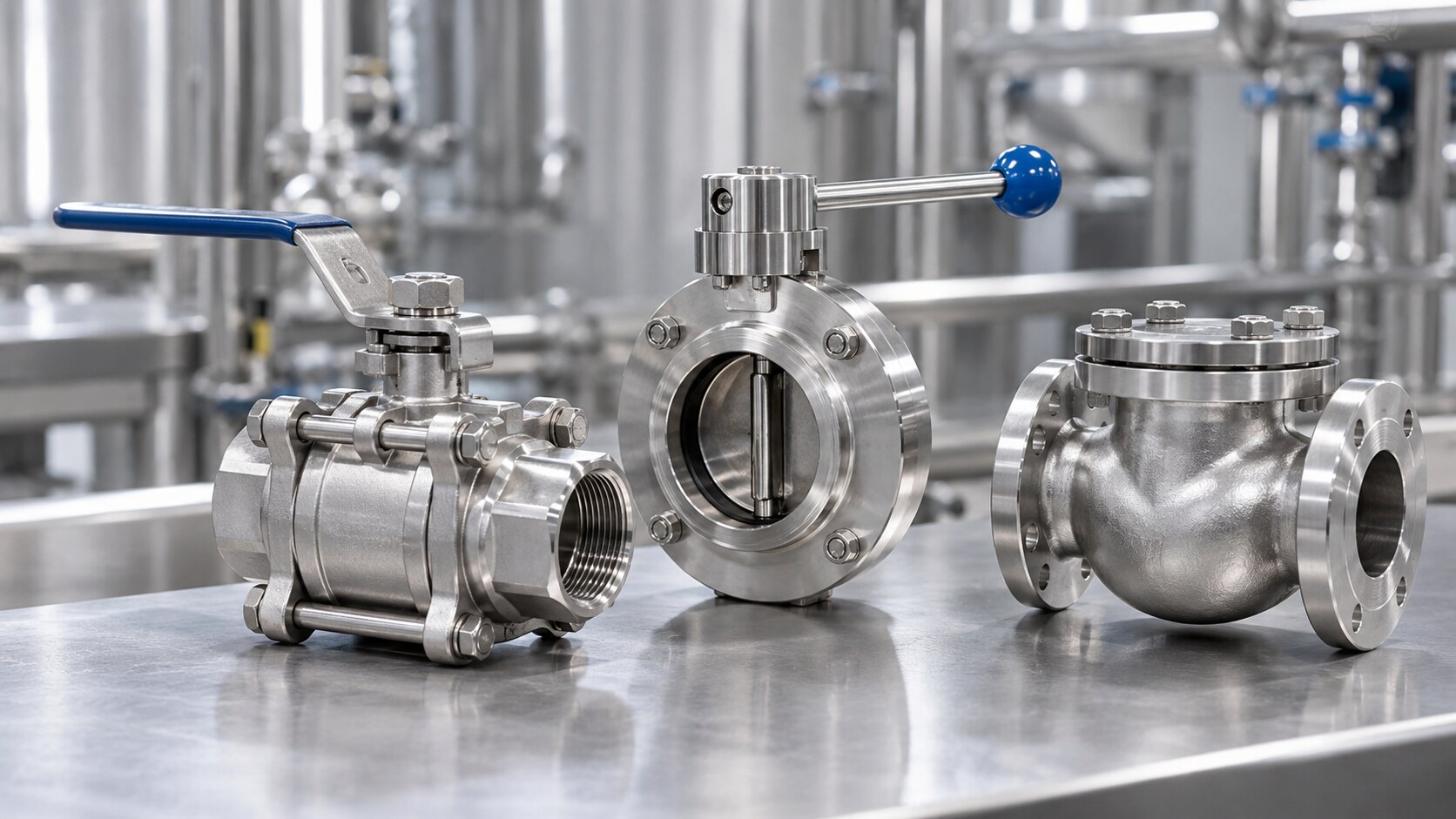

SS Valves
Ball, butterfly, check and gate valves in 304 / 316 with threaded, flanged or wafer ends.

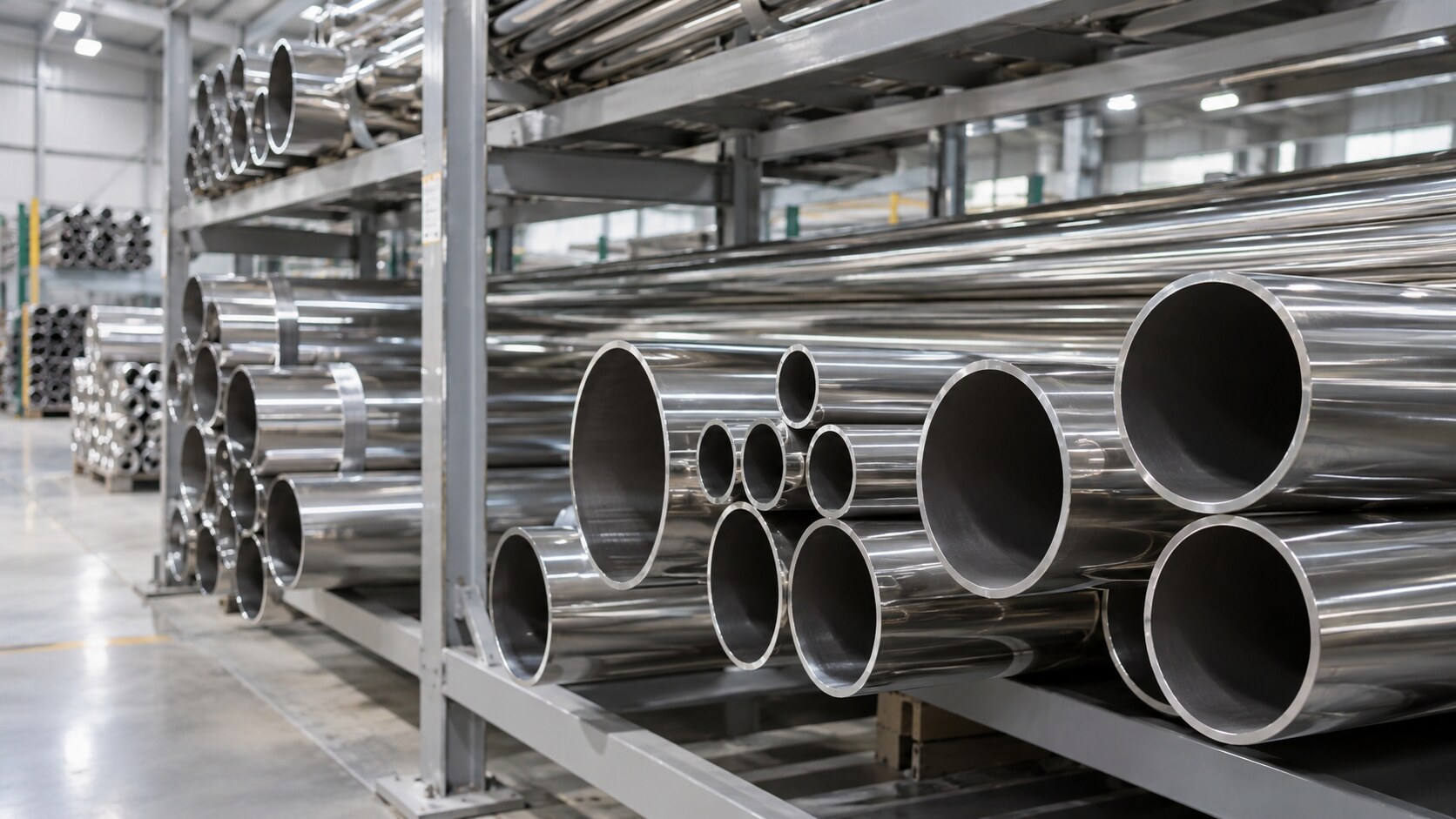

SS Pipe & Tube
Welded and seamless pipe and tube, Sch 10S – 80S, mill finish or polished, with 3.1 certificates.
Project packages. Send us your drawings or bill of materials and we'll price the complete package — pumps, filters, fittings, valves and accessories — with a single delivery schedule and one point of contact.
