Packaged Pump Skid Systems
MIAH Electromechanical is a leading manufacturer of pump skid systems across multiple industry sectors. Pump skid systems come complete with PLC automation and touch-screen HMI controls, and are ready to move fluid or product when arriving on site.
Our engineers work closely with your team to design a custom pump skid system using the latest 3D modeling software. Accuracy and safety are at the forefront of our engineering, and our team will ensure your pump skids meet or exceed any technical, ADOSH / OSHA, or government regulations.
Common Pump Skid Applications

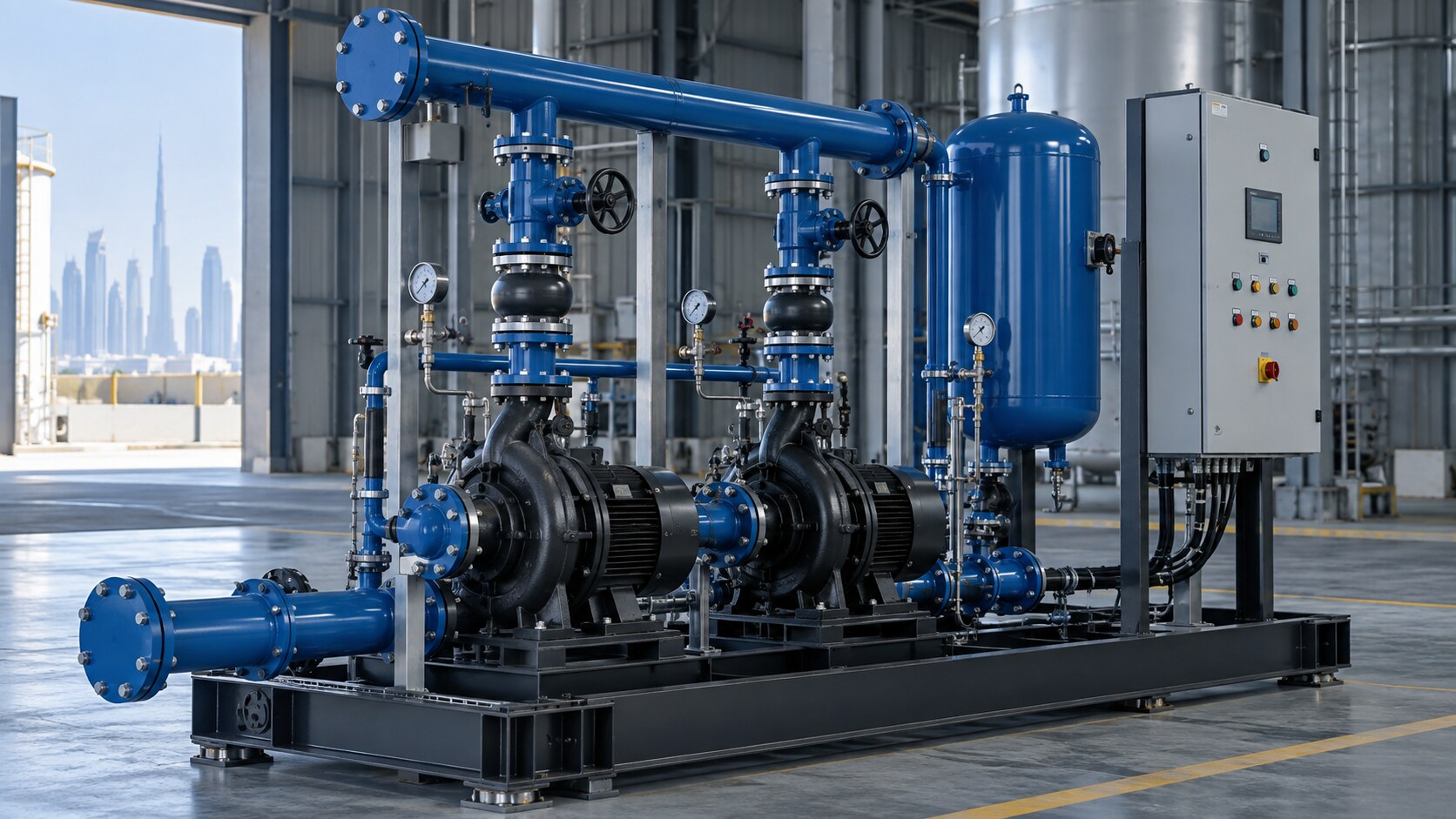

Packaged Pump Skids
A custom solution for your fluid-handling needs. Bring us your ideas or specifications and our in-house mechanical and electrical engineers will find the best solution — fully automated with PLC and touch-screen controls.

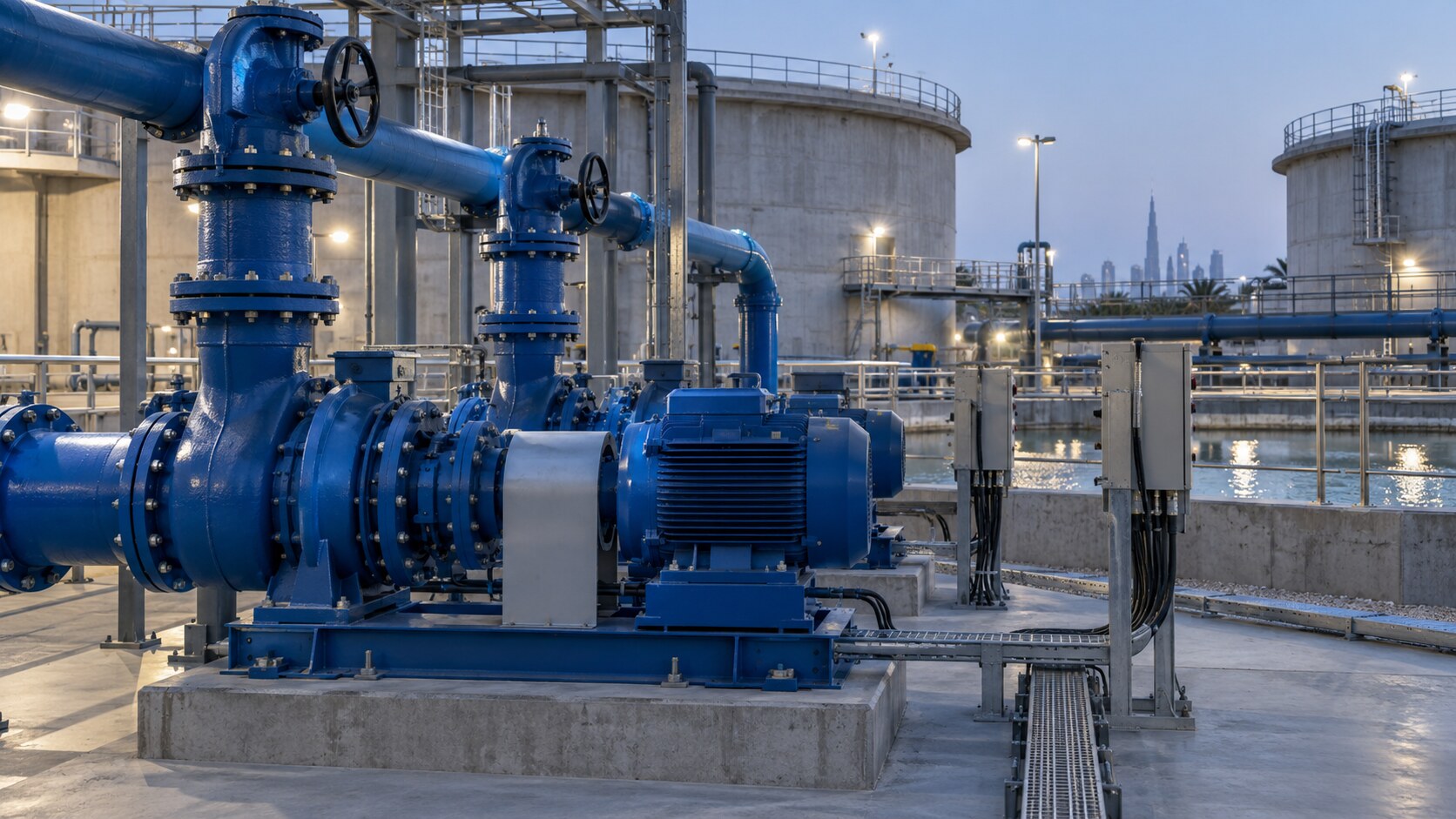

Water & Wastewater
Skid-mounted pump and chemical metering packages built to your technical and regulatory requirements. Experienced in pH control, conductivity, polymers and water analysis.
Chemical Metering Skids
Safe and accurate blending, mixing and injection packages for liquids and chemicals — mixing systems, blending systems, additive injection and sampling systems.

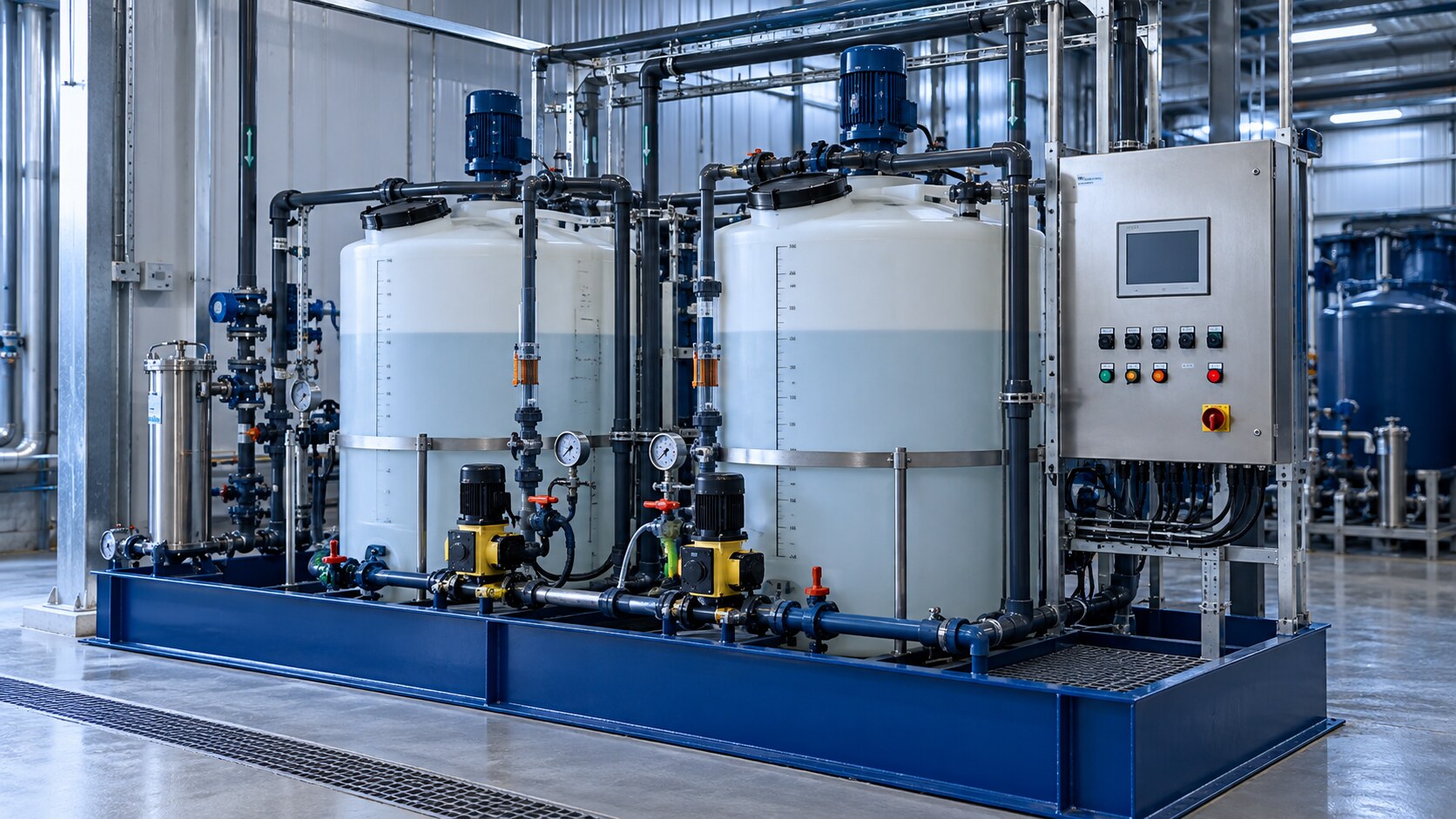

Chemical Feed Skid Systems
Many configurations of packaged chemical feed systems. We take your needs, create a 3D model, then fabricate, automate, test and deliver ready to move product.
Booster & Boiler Feedwater
Pressure-boosting and boiler feed packages with VFD control, deaerator integration, low-suction protection and full instrumentation.
Process Cooling & Tepid Water
Chilled water, glycol, heat-transfer and tepid water safety-shower systems with N+1 redundancy for critical facilities.

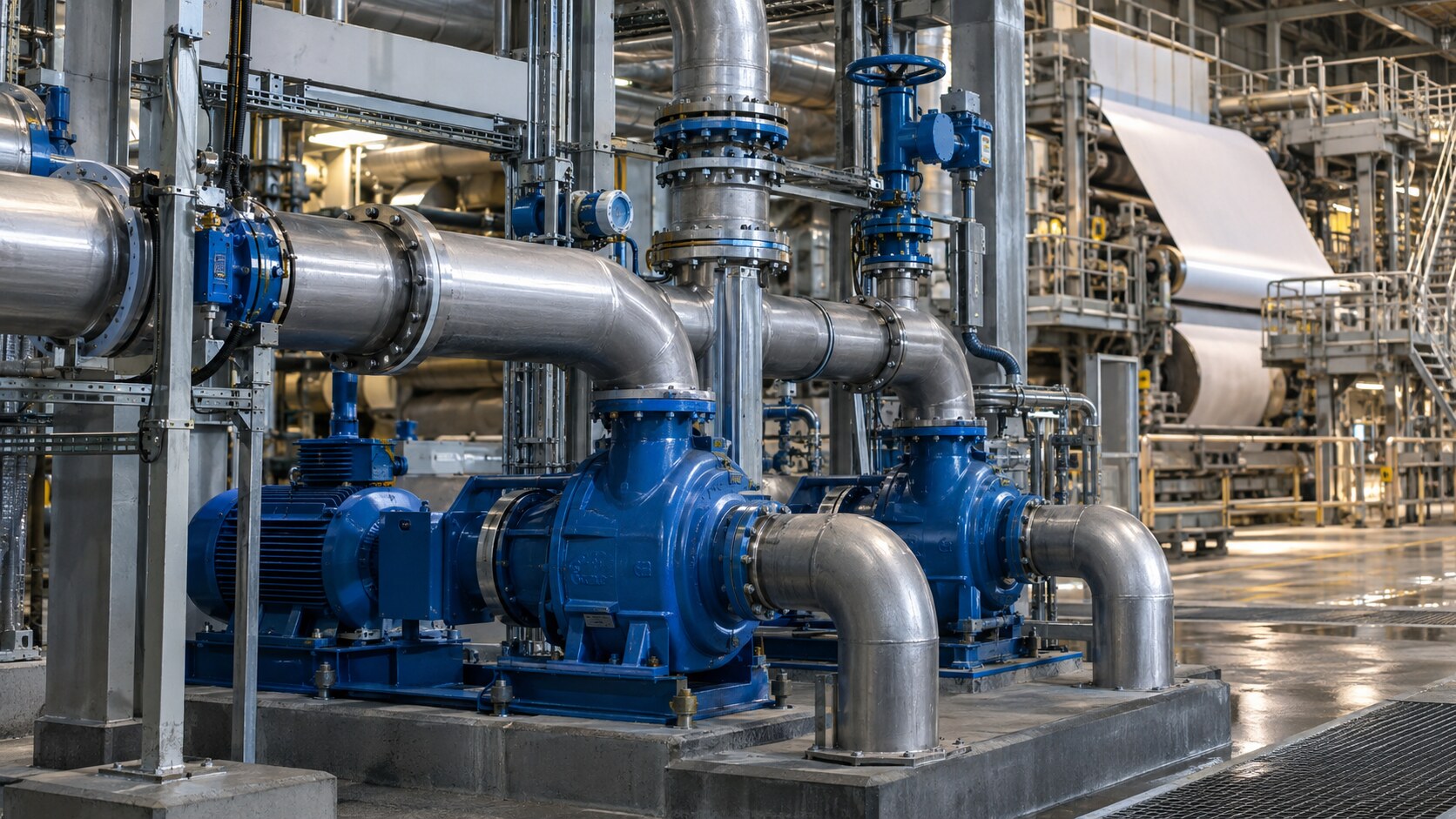

Pulp & Paper
Years of experience across all stages of pulp and paper production — defoamer skids, polymer systems, chemical metering and injection.

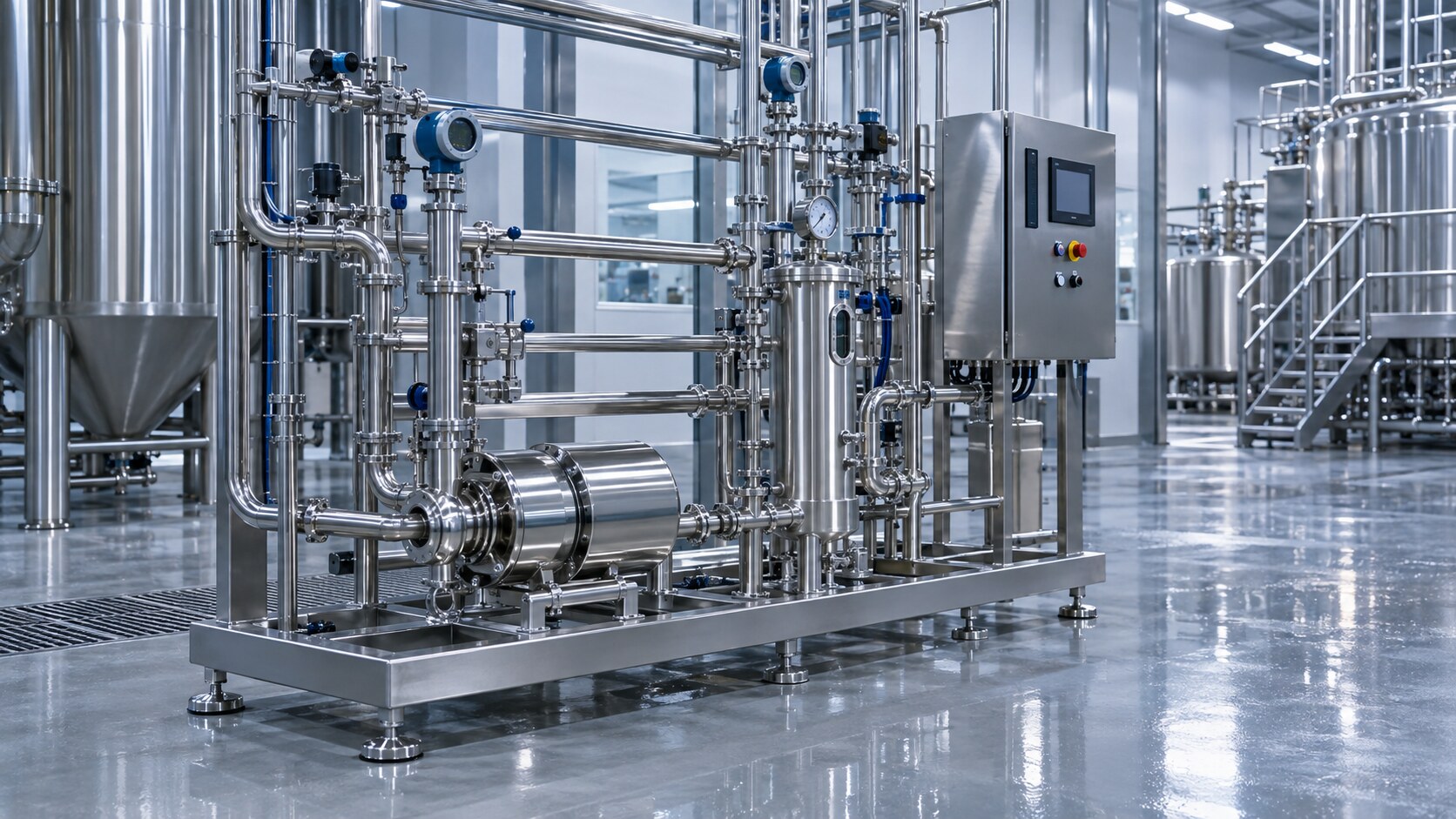

Food, Beverage & Pharma
Sanitary stainless pump skids with CIP-ready piping, tri-clamp fittings and washdown-rated controls.
Common Pump Skid Components
- Industrial powder-coated ASME fabricated steel skid frame
- Piping — client provided or MIAH designed (carbon steel, stainless or PVC)
- Pumps sized to your specific flow (m³/h) / head requirements
- Manual or actuated ball, gate and check valves
- Pressure, flow, level and temperature instrumentation
- Automation controls / HMI — integrates with your existing infrastructure
- UL 508A listed control panel with VFDs or soft starters
- Complete skid user manual in physical and PDF format
| Flow Range | 1 – 2,300 m³/h (5 – 10,000 GPM), single or multi-pump |
|---|---|
| Pressure Range | Up to 100 bar (1,500 PSI) discharge |
| Pump Types | Centrifugal, positive displacement, metering, progressive cavity, vertical turbine |
| Materials | Carbon steel, 304/316 stainless, duplex, PVC/CPVC, lined |
| Controls | Allen-Bradley, Siemens or client-specified PLC; HMI touch-screen; remote I/O; Ethernet/IP, Modbus |
| Electrical | UL 508A, NEMA 4/4X/7/12 enclosures; Class I Div 1/2 available |
| Codes | ASME B31.3, ASME Section VIII, API, NFPA 70, IEC, ADOSH / OSHA |
Every skid is fully factory tested. All pump skid packages pass through our Quality Assurance process before shipment. We invite clients to visit our facility and witness testing. We also provide in-house training and start-up commissioning if needed.
Advantages of Using MIAH Electromechanical
- Full in-house one-stop-shop experience — our mechanical and electrical engineers use the latest 2D and 3D CAD and SolidWorks software to design every system
- Integrated process automation controls, PLCs and HMIs
- ASME pipe fabrication, assembly and testing are all done at our facility
- Turnkey systems provide a single point of contact for your entire project
- All systems are Factory Acceptance Tested (FAT) in-house and will meet all safety, government and industry regulations your project may require
- Single point of contact for technical support, operator training and start-up commissioning
- Complete set of manuals for every piece of equipment and system
- Reduced installation and start-up time — ready to move product shortly after arriving on site
- Reduced delivery lead times, project costs and improved accuracy
Give us a call today at +971 2 565 3557 for more information on custom pump skid systems for your next facility or project.
