Plug-and-Play Pump Stations in a Container
A MIAH containerized pump station is a complete pumping plant — pumps, manifolds, valves, control panel, power distribution, air-conditioning and lighting — installed, wired and tested inside a new ISO shipping container. It arrives on a truck, is set on a prepared pad, and is pumping the same day: connect suction, discharge and power, and start.
For remote sites, temporary works, phased developments and hot-climate installations, a container replaces a full pump-house build. There is no civil structure to design, no roof to wait for, and no exposed equipment. When the project moves, so does the station.
Typical Applications

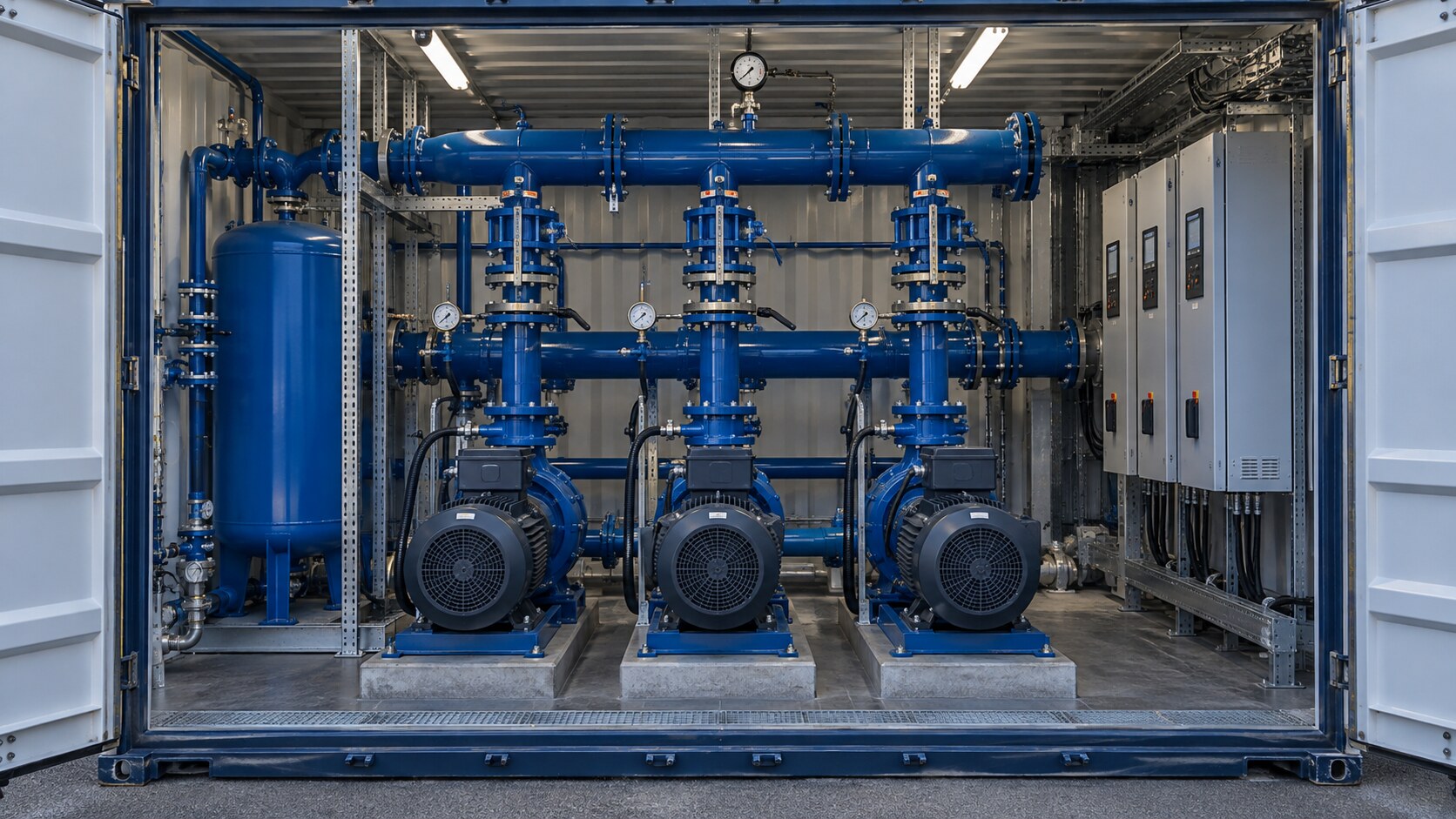

Water Booster & Transmission
Multi-pump booster stations for potable networks, high-rise supply, transmission mains and tank-to-tank transfer with VFD pressure control.

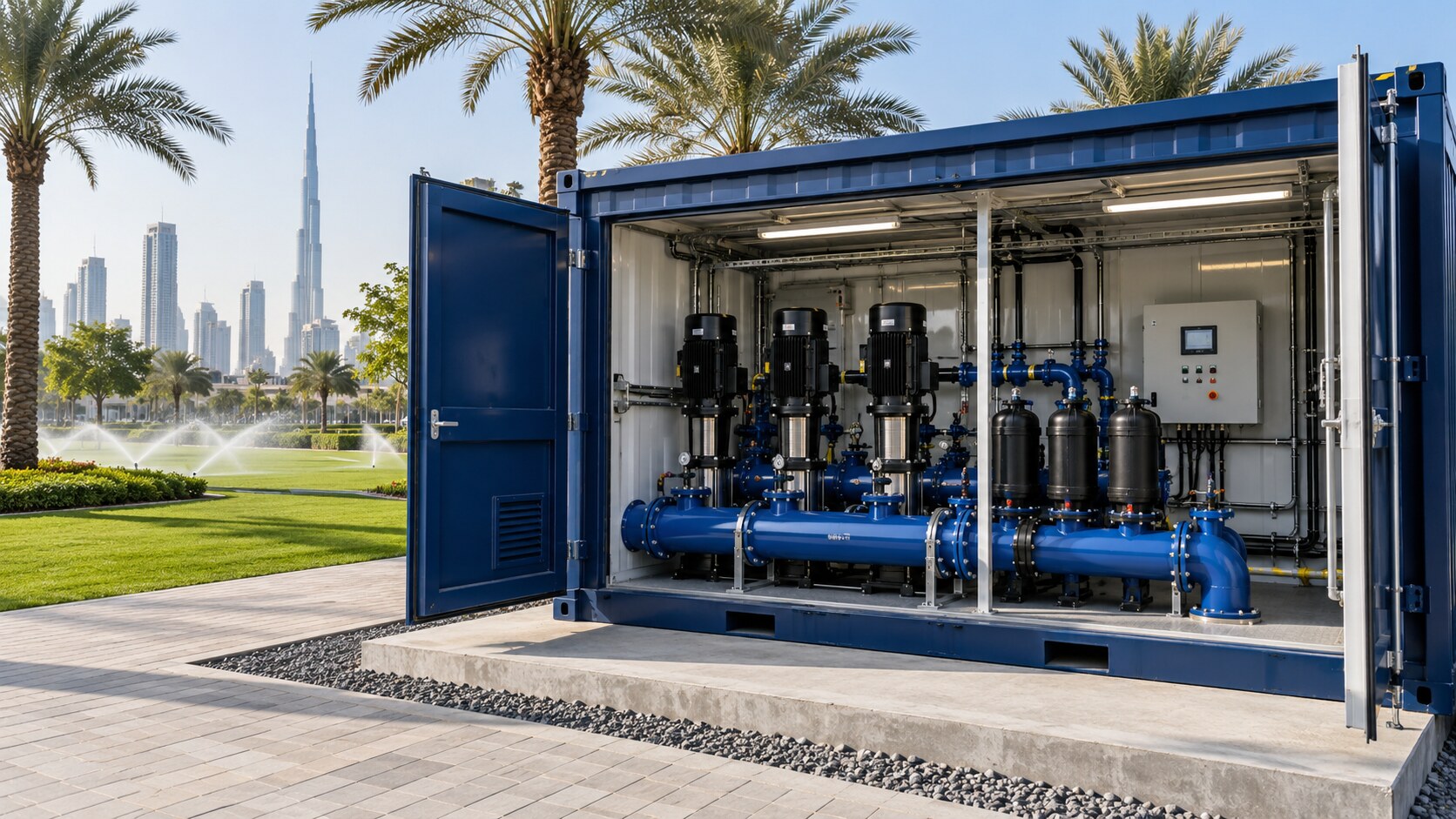

Irrigation & Landscaping
Master irrigation pump stations for farms, golf courses, parks and roadside landscaping — with filtration, fertigation dosing and remote monitoring.

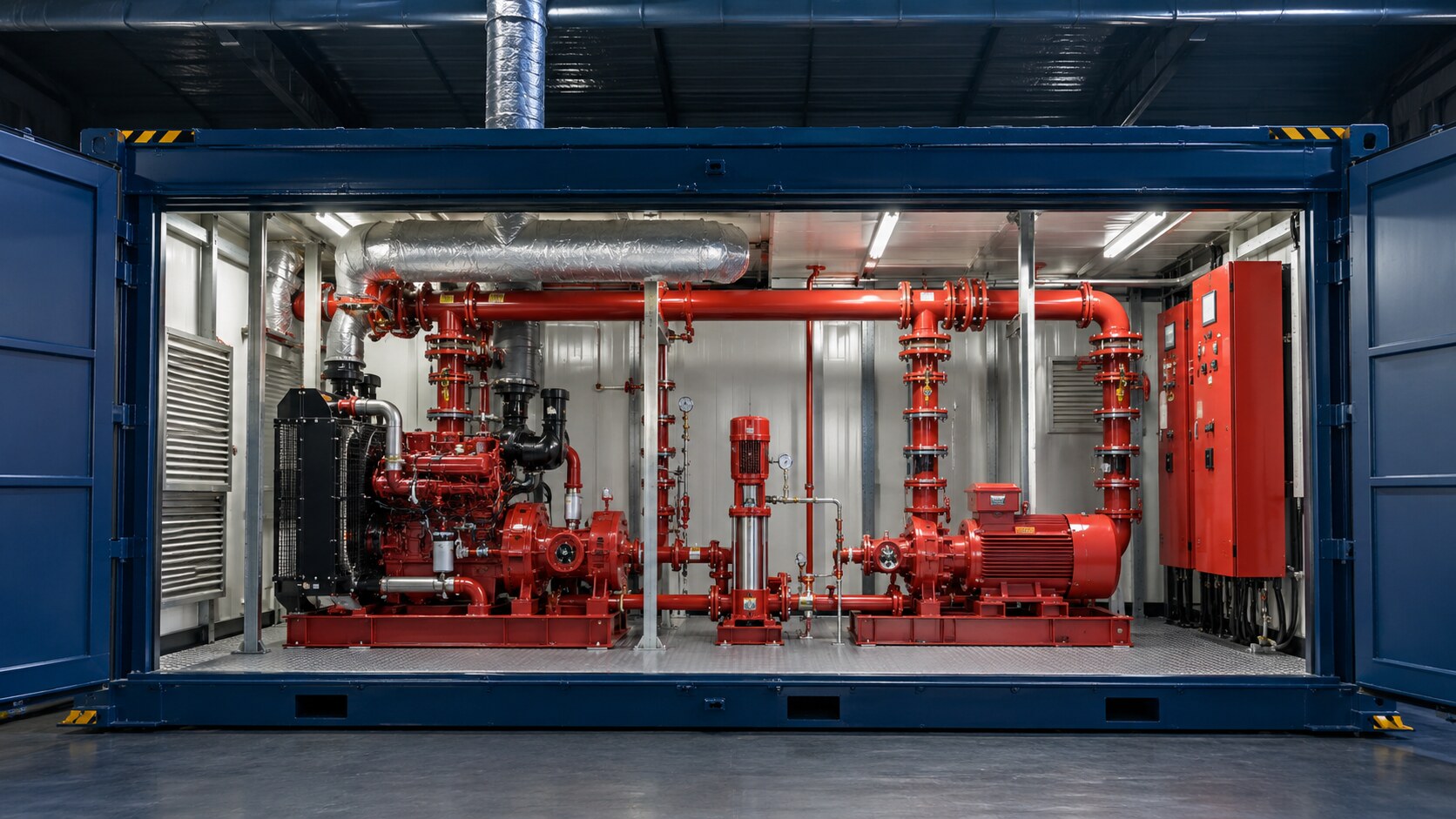

Fire Pump Rooms
NFPA 20 compliant containerized fire pump rooms: electric and diesel main pumps, jockey pump, controllers, fuel tank and ventilation — a fire pump house delivered as one unit.

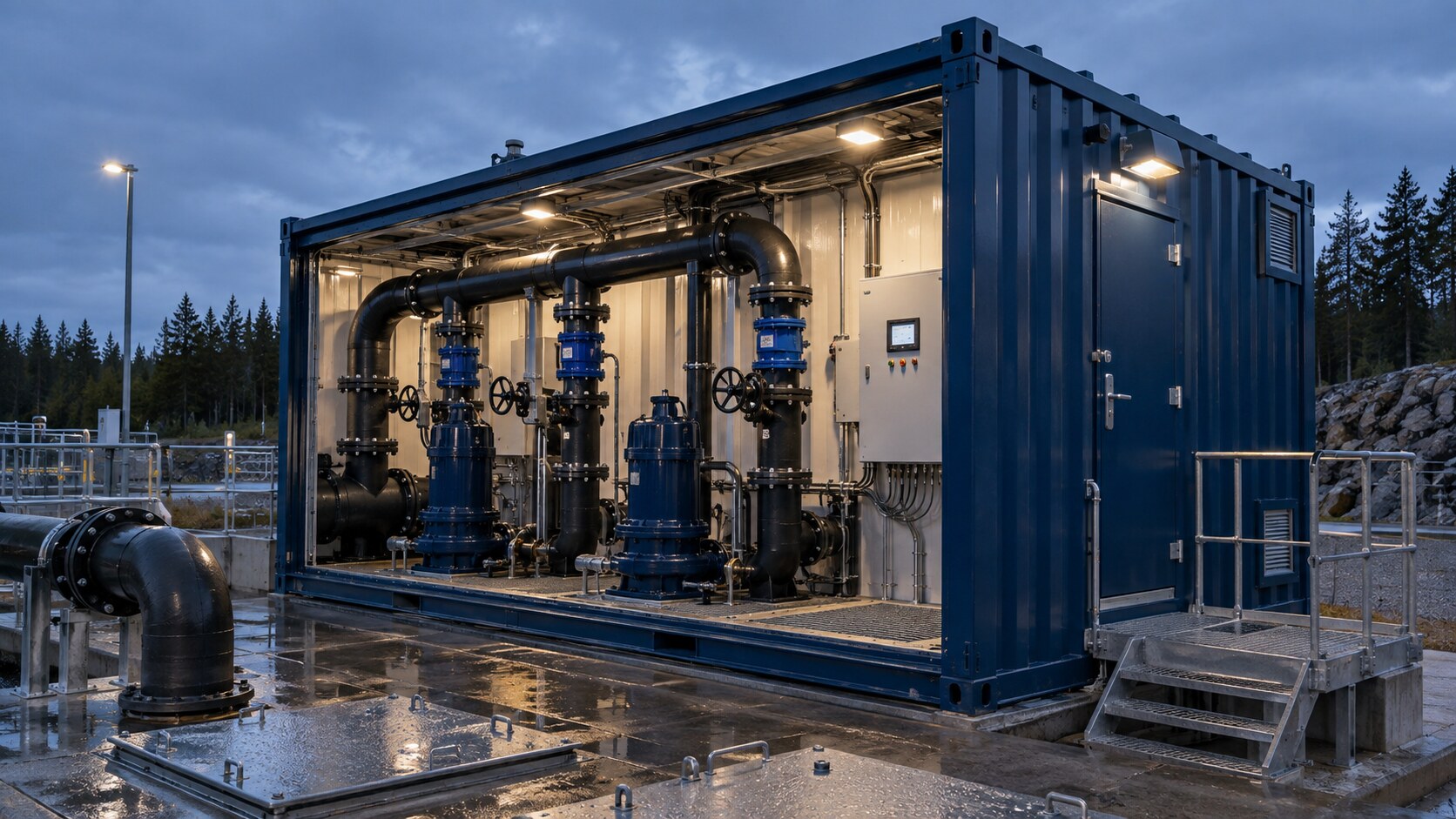

Sewage & Drainage Lift Stations
Above-ground packaged lift stations with dry-mounted or self-priming sewage pumps, odour control and level automation — no deep wet well excavation.

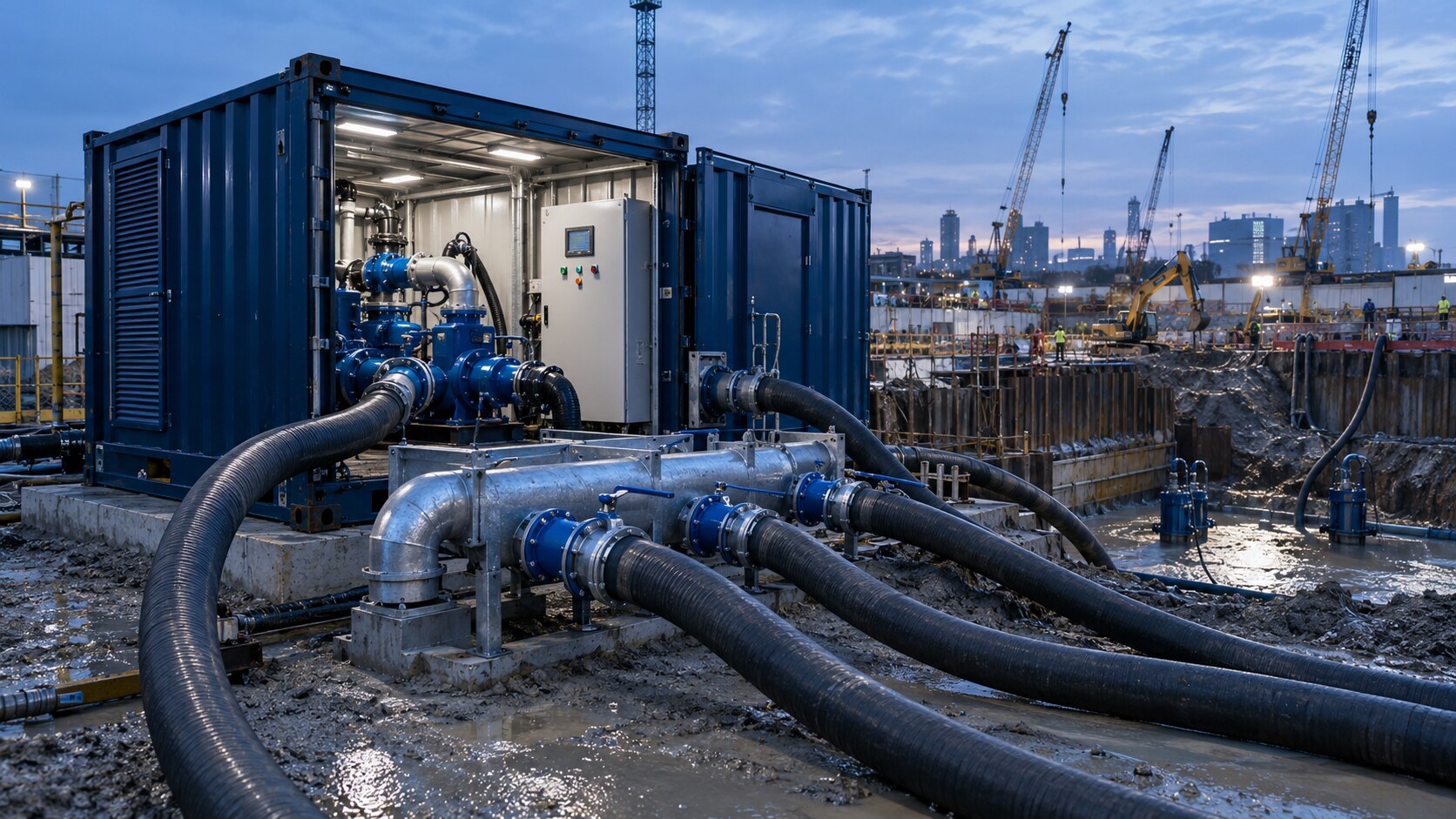

Dewatering & Construction Water
Relocatable stations for site dewatering, groundwater control, concrete batching supply and camp water for temporary works.

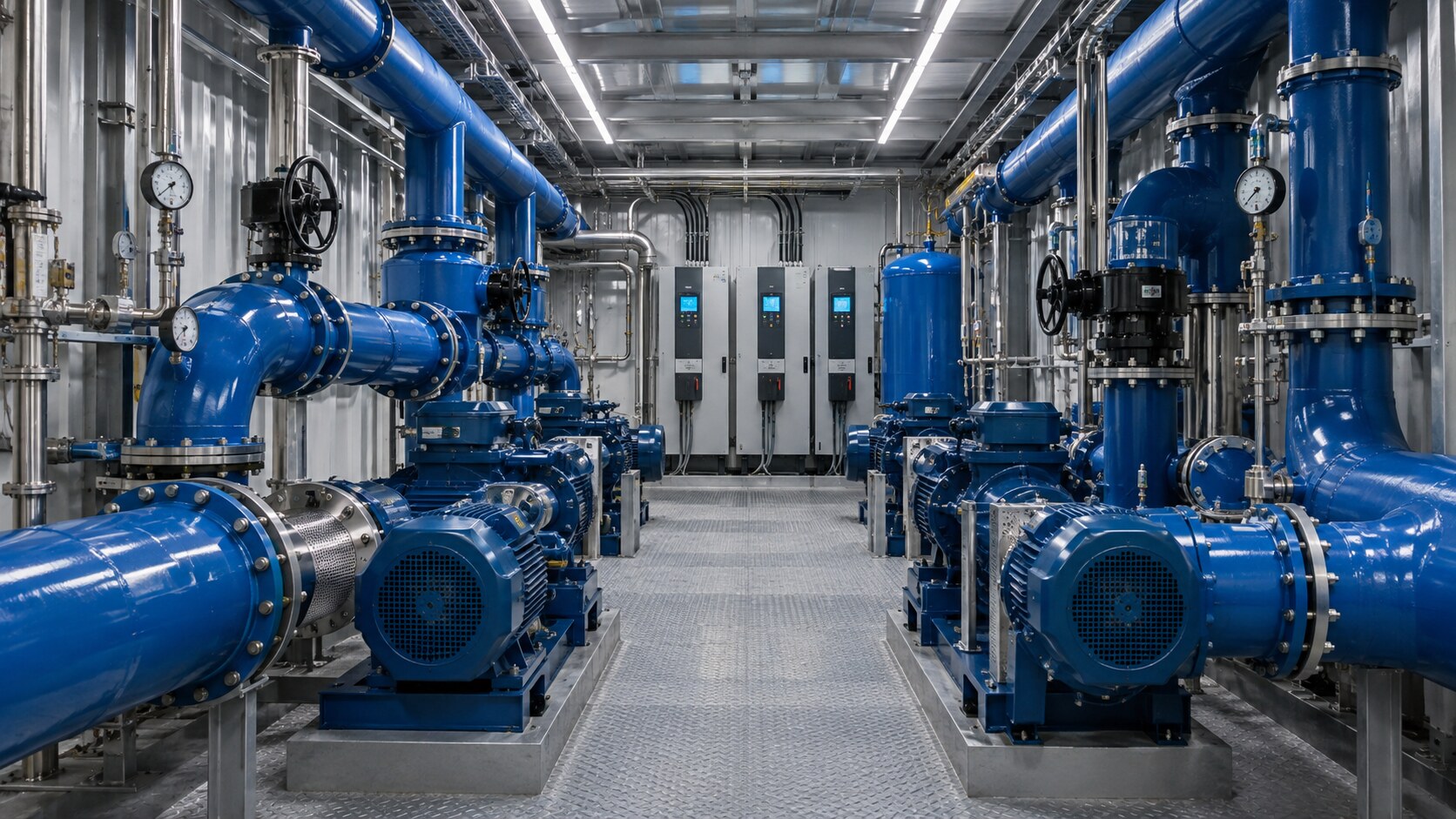

Industrial & District Cooling
Chilled water, condenser water and process cooling pump stations for plants, data centres and district-cooling ETS rooms.

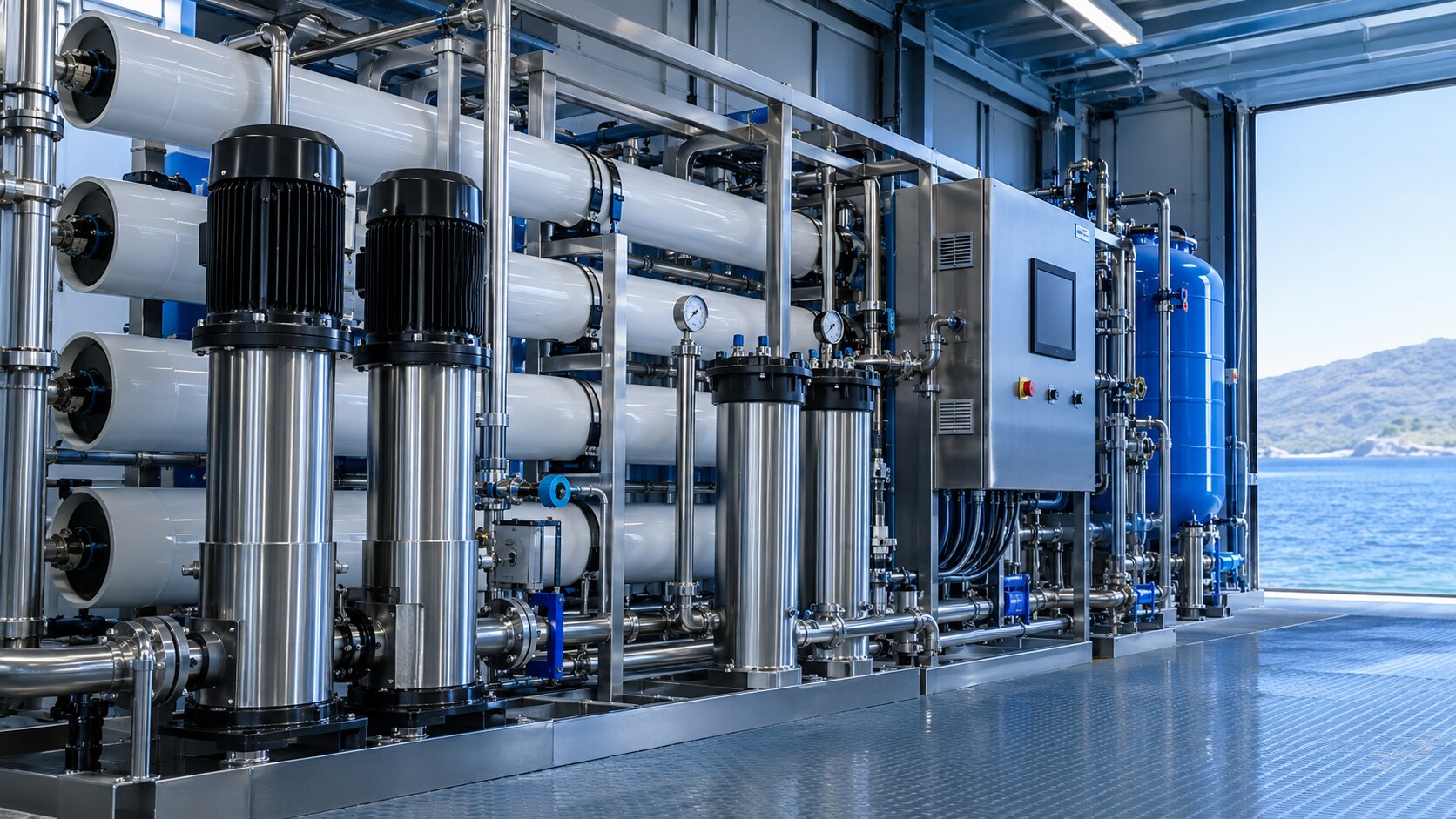

RO / Treatment Feed
Raw-water intake, RO feed and high-pressure pump stations with pre-filtration, chemical dosing and instrumentation in one enclosure.

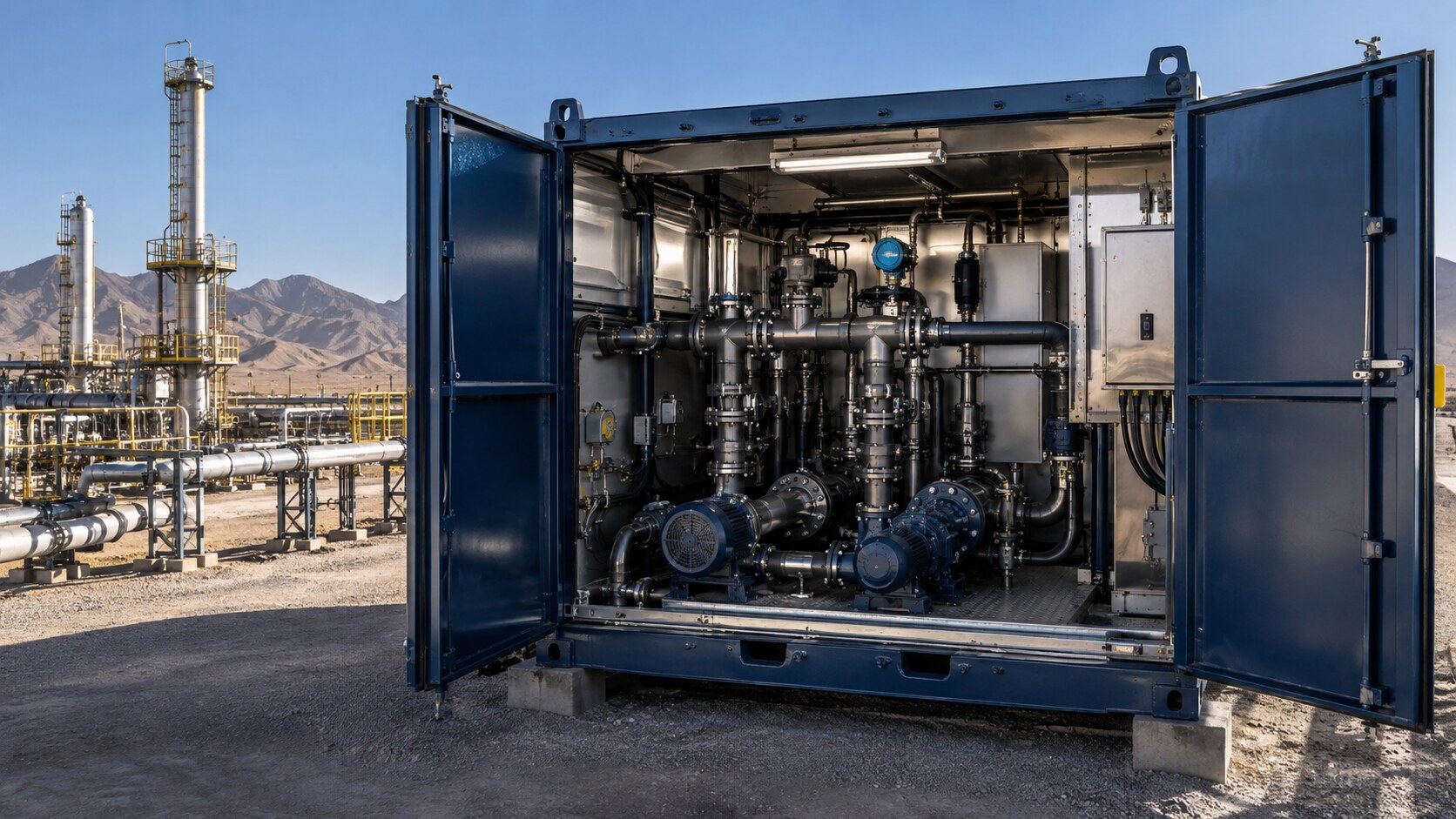

Oil & Gas Utilities
Utility water, firewater and transfer pump packages for remote well sites, camps and terminals — Zone 2 rated options available.
What's Inside
- New 10 ft, 20 ft or 40 ft ISO container (CSC-plated) with anti-corrosion coating
- Reinforced floor with pump plinths and drainage sump
- 1 – 6 pumps: end-suction, split-case, vertical multistage, submersible or fire pumps
- Suction and discharge manifolds in carbon steel, DI or stainless
- Isolation, check and control valves; pressure and flow instrumentation
- Motor control centre (MCC) with VFDs or soft starters, UL 508A / IEC 61439
- PLC + HMI automation with duty/standby rotation and remote SCADA / GSM alarms
- Power distribution board; generator or solar-hybrid input on request
- Insulated walls and roof (50 mm PU / rockwool) with split or ducted air-conditioning
- LED lighting, emergency lighting, sockets, earthing and lightning protection
- Personnel door with panic bar, equipment access doors, forced ventilation
- Fire & gas detection, portable extinguishers, signage
- Surge vessel, pressure tank and pipe supports
- Lifting points and transport frame for repeated relocation
| Container Sizes | 10 ft (3.0 m) · 20 ft (6.1 m) · 40 ft (12.2 m) · 40 ft high-cube · twin-container for larger stations |
|---|---|
| Flow Range | 10 – 3,000 m³/h per station (larger on multi-container arrangements) |
| Head / Pressure | Up to 25 bar; fire pump packages to NFPA 20 duty points |
| Power | 380–415 V / 3 ph / 50 Hz (others on request) · optional generator or solar-hybrid supply |
| Climate Rating | Designed for 50 °C ambient — insulated, air-conditioned, sand-filtered ventilation |
| Controls | Siemens / Allen-Bradley / Schneider PLC, HMI touch-screen, Modbus / Ethernet-IP / GSM telemetry |
| Standards | ISO 1496 / CSC container · ISO 9001 build · IEC 61439 panels · NFPA 20 (fire) · ADOSH / OSHA safety |
| Options | Filtration, chemical dosing, flow meter & billing, CCTV, access control, external canopy, branding / colour to client spec |
Why Containerized?
Faster
Built in our workshop while your site is being prepared. Typical delivery in 8–14 weeks; installation and commissioning in days, not months.
No Pump House
No civil design, foundations, roofing or MEP fit-out. A level pad and utility connections are all the site needs.
Protected Equipment
Pumps and panels live in a secure, insulated, climate-controlled enclosure — critical for UAE summers, sand and remote locations.
Relocatable
Lift it, truck it, set it down. Ideal for temporary works, phased masterplans and rental fleets.
Fully Factory Tested
Every station is hydro-tested and run under load at our facility — witnessed FAT available — so start-up on site holds no surprises.
One Point of Contact
MIAH designs, builds, delivers, commissions and services the station. One contract, one warranty, one phone number.
Site requirements are minimal: a level concrete or compacted pad, suction and discharge tie-in points, and a power feed (or space for our generator). We provide the foundation drawing, load data and tie-in details with every order.
Call us at +971 2 565 3557 or send your duty point and site details for a containerized pump station proposal.
Request a Quote
